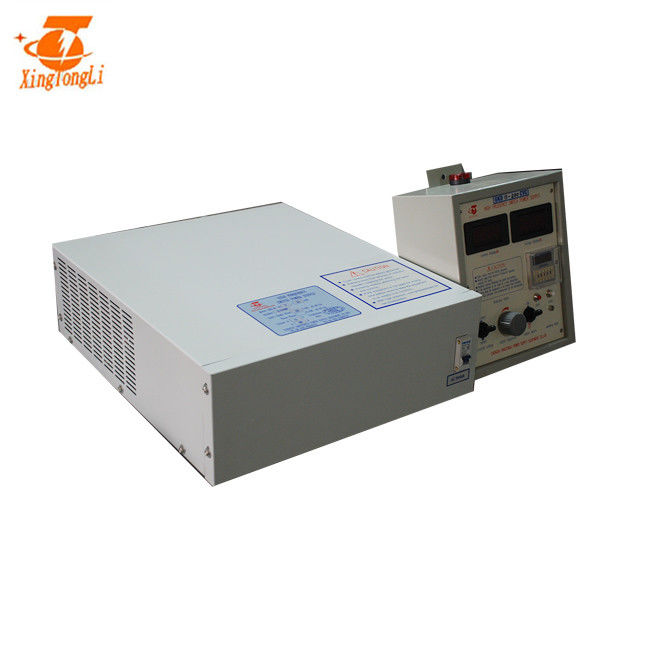

36V Electrolysis Power Supply

DC Power source Electrolysis Seawater Chlorine power supply 300a 18V​

Description of high frequency electrolytic power supply:

In chemistry, electrolysis is a method of separating bonded elements and compounds by passing an electric current through them. An ionic compound, in this case salt, is dissolved with an appropriate solvent, such as water, so that its ions are available in the liquid. An electrical current is applied between a pair of inert electrodes immersed in the liquid. The negatively charged electrode is called the cathode, and the positively charged one the anode. Each electrode attracts ions which are of the opposite charge. Therefore, positively charged ions (called cations) move towards the cathode, while negatively charged ions (termed anions) move toward the anode. The energy required to separate the ions, and cause them to gather at the respective electrodes, is provided by an electrical power supply. At the probes, electrons are absorbed or released by the ions, forming a collection of the desired element or compound. .

Specification

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

Feature:

1. Display: LED display of output voltage and current (D LCD display can be added according to customer requirements);
2. Appearance: desktop, tower or 19-inch standardized size, can be combined and placed on various work surfaces and racks;
3. Advantages: High frequency PWM hardware adjustment soft switch control technology makes the power supply high efficiency, low ripple, low noise, high reliability, small size and light weight;
4. Constant voltage and constant current: The output CC/CV constant voltage and constant current are automatically switched, and the voltage and current values ​​are continuously and linearly adjusted from zero to the rated value;
5. Protection function: over-voltage protection (OVP), over-current protection (OCP), over-temperature protection (OTP), under-voltage protection, overload protection;
6. Short-circuit characteristics: it can be short-circuited for a long time under working conditions;
7. External compensation: Optional external compensation (Remote Sensing) can be used to reduce loop cable voltage drop;
8. Overvoltage protection value: The output overvoltage protection value is adjustable, after protection, the output is cut off and locked, and restarted to restore;
9. Current preset function: The user can preset any current actually required by the load without connecting the load. When the product actually has current output, the actual output of a large current can reach the preset value (optional) .
10. Voltage preset function: The user can preset any voltage actually required by the load without output voltage. When the product actually has voltage output, the actual output larger voltage can reach the preset value. (Optional)
11. Overvoltage preset function: The overvoltage protection value of the power supply can be preset on the panel, that is, press and hold the overvoltage preset button on the panel, adjust the overvoltage potentiometer, and you can get the actual required overvoltage protection value. (Optional)
12. Computer program control function: optional RS485/RS232/GPIB/LAN/CAN and other data interfaces, standard Modbus or Can2.0 communication protocol, and computer/host computer software control and monitoring can be configured. It can be controlled by multiple sets of network, and master-slave parallel control. (Optional)
13. PLC remote sampling: optional (isolated/non-isolated) 0-5V, 0-10V, 4-20mA and other PLC analog signals to control the voltage and current control of the power supply and feedback; switch signal and high and low level signal switching machine; ( (Optional)
14. Programming and storage function: 30 sets of different voltage, current, delay time and running time can be set at a time, and can be cycled 999999 times; 10 sets of memory group parameters are stored for easy recall. (Optional)
15. Timing function: optional timing switch function, timing operation or cycle permission; (optional)
16. Positive and negative commutation function: can provide output positive and negative commutation function (bipolar), commutation mode: manual, timing, computer program control, etc. (optional)
17. Pulse function: add a chopper circuit to the basic circuit of the conventional DC power supply to realize the independent adjustment of voltage, current, frequency and duty ratio; single pulse, periodic commutation pulse, positive and negative double pulse, etc. (optional)
18. Installed ampere meter: larger setting range 1-9999999 ampere minutes (if you want to divide the set value by 60 in ampere hours); the cumulative (AH) display value is the cumulative value from the factory to the time of viewing .
