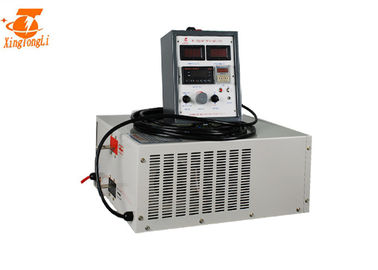

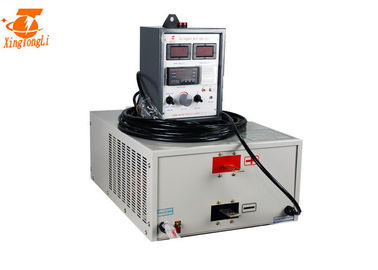

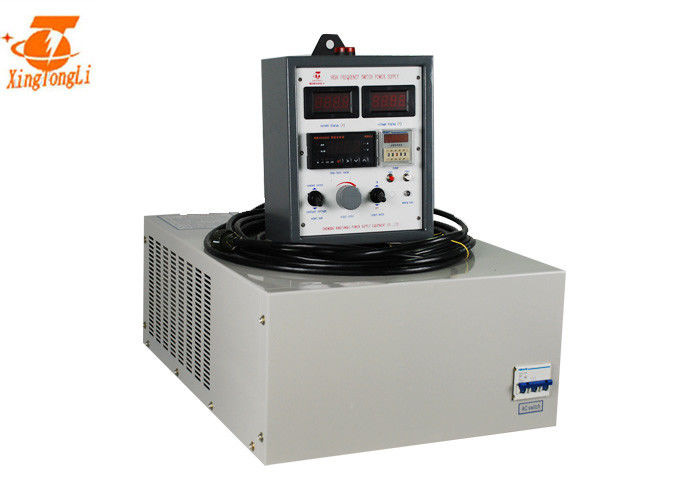

12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply
  • 12v 500a Three Phase Protable Igbt Electroplating Power Supply

12v 500a Three Phase Protable Igbt Electroplating Power Supply

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-500CVC
Product Details
Input Voltage:
220V/380V/415V
Phase:
3 Phase
Application:
Electroplating
Output Voltage:
DC 0~12V Adjustable
Output Current:
DC 0~500A Adjustable
Cooling:
Air Cooling
Control:
Remote Control
Accuracy:
CC CV +-1%
Output Frequency:
40khz
Size:
605*415*240mm
Weight:
35kg
High Light:

plating power supply

,

electroplating rectifier

,

500a Igbt Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 690*550*520mm Weight:50kg
Delivery Time
3~5days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500units/month
Product Description


techinical data.jpg

GENRAL SEPCIFICATION FOR 12V 500A igbt electroplating power supply

AC Input voltage 220v/380v/415v/450v
frequency 50/60hz
phase 3 phase
output current 0~500a optional
voltage 0~12v adjustable
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation

12v 500a Three Phase Protable Igbt Electroplating Power Supply 2

12v 500a Three Phase Protable Igbt Electroplating Power Supply 3

OPTIONAL FEATURE:12v 500a three phase protable igbt electroplating power supply

Reduced Ripple Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
Polarity Reversing manual reverse or automatic reverse
Digital Ampere-Hour / Minute Meter Totalizing, preset counter and solution metering configurations are available to meet process and EPA requirements.
Computer Interface allow isolated connections of a rectifier to a computer or PLC. The computer or PLC can send voltage and/or current control signals to the rectifier, and in return receive signals from the rectifier proportional to the output voltage and/or current. Available in Analog, Modbus, Profibus, ethernet and DeviceNet.
Variable Timer Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle

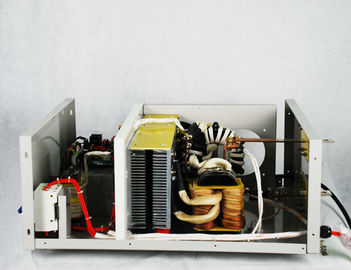

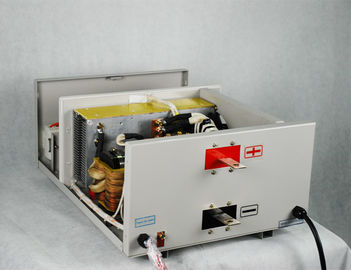

product detail show.jpg



12v 500a Three Phase Protable Igbt Electroplating Power Supply 5



Our Services


Complete pre & after service for this 125V 150A DC anodizing PLC control air cooling igbt rectifier

Pre-Sales Service

* Inquiry and consulting support within 12 hours.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the Eelectroplating machine.

* Engineers available to service machinery overseas.



12v 500a Three Phase Protable Igbt Electroplating Power Supply 7

Installation


1,Placing 15v 2000a high frequency switch model DC Industrial electrolytic rectifier and keep the body stability; ensure good ventilation.
2,Checking electrolysis rectifier out cover if loosing.
3,Connecting shell to ground to prevent static electricity.
4,Conecting the AC input wire
5,Connecting the DC output copper bars

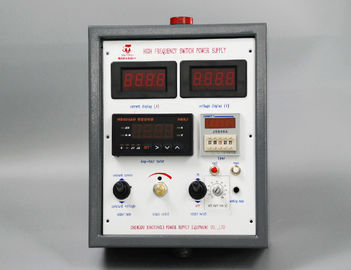

6,Connecting the remote control box,if local control ,skip this step
7,Turn on air switch, then the fan starts to rotate and the power indicator light.
8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10,Disconnect the air switch, turn off the power
