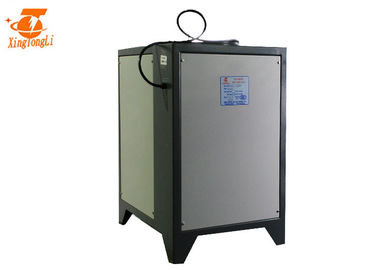

Electrolysis Power Supply
>
|
| Place of Origin | China |
| Brand Name | xingtongli |
| Certification | ISO CE |
| Model Number | GKD15-2000CVC |
GENRAL SEPCIFICATION 15v 2000a high frequency switch model DC Industrial electrolytic rectifier
| AC Input | voltage | 440v |
| frequency | 50/60hz | |
| phase | 3 phase | |
| output | current | 0~2000a optional |
| voltage | 0~15v optional or according to customers’ request | |
| frequency | 40khz | |
| effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |
| control method | local panel control/remote control box/ PLC | |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE:15v 2000a high frequency switch model DC Industrial electrolytic rectifier
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
| PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |
|

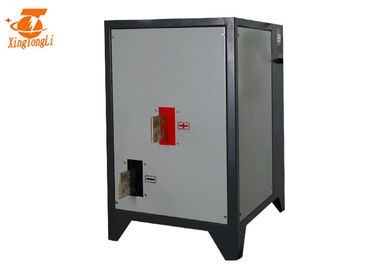

Cabinet: electrolysis rectifier Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |

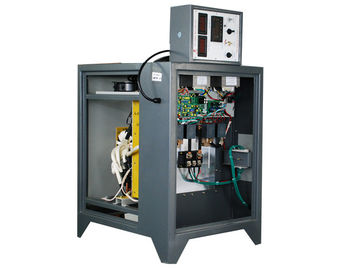

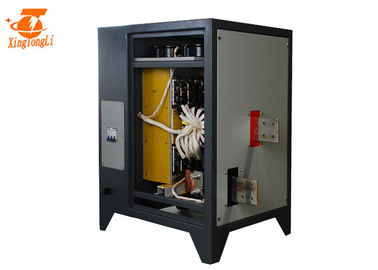

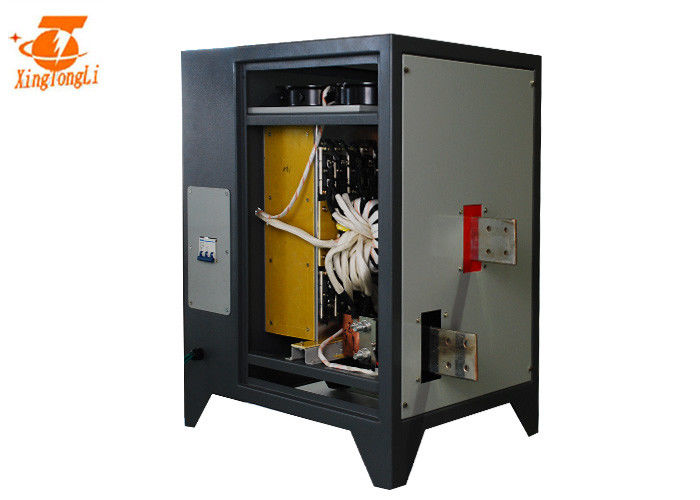

Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: electrolysis rectifier adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: dc electrolyisis rectifier adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |

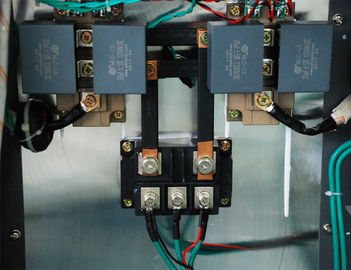

Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: aluminum anodizing rectifier IGBT capacity expanded 3 times,make the power supply more reliable |
Installation
| 1,Placing 15v 2000a high frequency switch model DC Industrial electrolytic rectifier and keep the body stability; ensure good ventilation. |
| 2,Checking electrolysis rectifier out cover if loosing. |
| 3,Connecting shell to ground to prevent static electricity. |
| 4,Conecting the AC input wire |
| 5,Connecting the DC output copper bars |

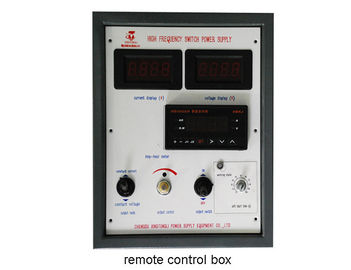

| 6,Connecting the remote control box,if local control ,skip this step |
| 7,Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
|
10,Disconnect the air switch, turn off the power |
