15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency
  • 15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency

15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD15-300CVC
Product Details
Product:

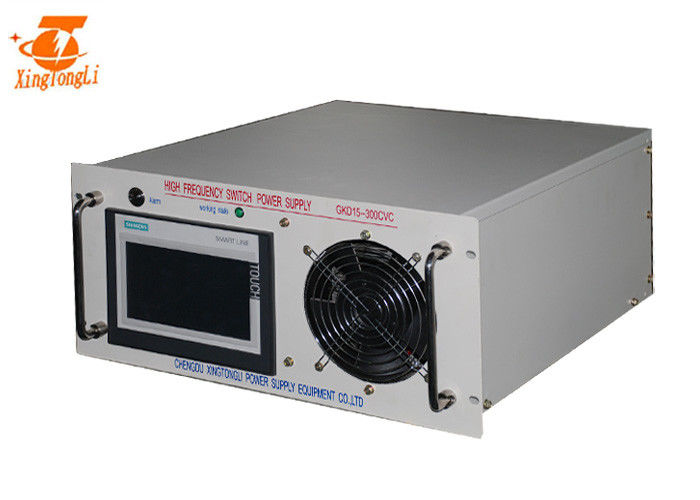

High Frequency Igbt Copper Electrolytic Rectifier
Control:
SIEMENS PLC Control
Input:
220v
Phase:
Single Phase
Size:
483*222*217mm
Weight:
35kg
Color:
White
Accuracy:
CC CV +-1%
High Light:

electrolytic rectifier

,

electrolysis machine power supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 670*510*420mm Weight:55kg
Delivery Time
7~10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 units /month
Product Description

15v 300a High frequency igbt copper electrolytic power supply wth PLC control



Application:



Mainly for non-ferrous metal electrolysis: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; gold, silver and other metal smelting; NdFeB rare earth smelting; carbide, diamond smelting; salt water, potassium electrolysis made caustic soda, potash, sodium system; fire electric heating material, as well as other types of high-power DC power supply.



  15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency 0



High frequency electrolytic power supply description:



1, Can configure a single main cabinet or double main cabinet plus control cabinet structure according to user requirements.
2, When DC output current≥10 KA, adopt full circuit electrically coupled in parallel with the reverse-phase rectifier circuits, drastically reducing the eddy current losses and improve the efficiency of electrolytic power supply.
3, Control mode can be divided into: open loop (manual) and closed loop (automatic) two kinds
4. This series electrolytic power supply with over-current, over voltage, short circuit, under branches, under phase, high water temperature, water pressure, oil temperature and high/low, higher oil pressure protection, fully integrated control loop.
5, Major control board using high anti-interference high-power digital circuit triggers system, has a strong anti-jamming capability. And having advantages of high accuracy control, good stability, reliable operation.
6, Cabinet adopts cutting magnetic link, reducing the eddy current loss, the cabinet with a whole spray plastics.
7, Control methods: integrated analog control and computer control two categories.

15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency 1

15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency 2

15V 300A Copper Electrolysis Power Supply , Electrolytic Rectifier High Frequency 3

Cabinet:

electrolysis rectifier Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

electrolysis rectifier adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

dc electrolyisis rectifier adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

aluminum anodizing rectifier IGBT capacity expanded 3 times,make the power supply more reliable


1,Placing 15v 2000a high frequency switch model DC Industrial electrolytic rectifier and keep the body stability; ensure good ventilation.

2,Checking electrolysis rectifier out cover if loosing.

3,Connecting shell to ground to prevent static electricity.

4,Conecting the AC input wire

5,Connecting the DC output copper bars

6,Connecting the remote control box,if local control ,skip this step

7,Turn on air switch, then the fan starts to rotate and the power indicator light.

8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.

9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.

10,Disconnect the air switch, turn off the power
