20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing
  • 20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing

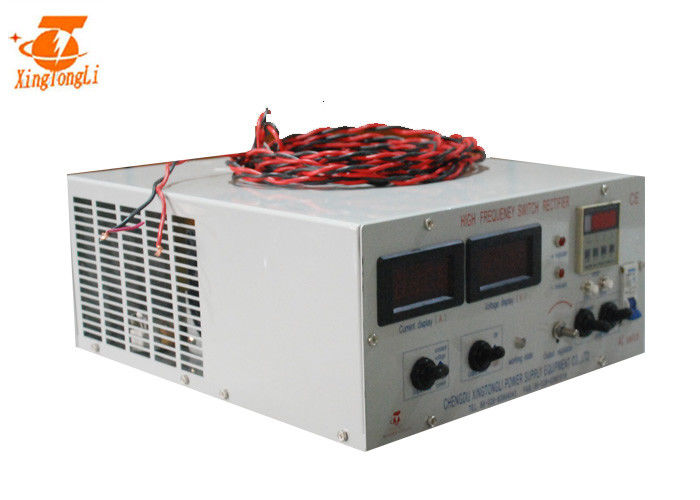

20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKDH20-20CVC
Product Details
Product Name:
Polarity Reversing Igbt Rectifier
Cooling:
Forced Air Cooling
Polarity Reverse:
Yes
Reverse Way:
Automatic
Reverse Time:
0~99 Hours Adjustbable
Size:
420*310*145mm
Weight:
10kg
Control:
Local Panel Control
High Light:

low ripple switching power supply

,

electrolysis machine power supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 1100*510*760mm Weight:120kg
Delivery Time
7~10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200units/month
Product Description

20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing



Application:



Mainly for non-ferrous metal electrolysis: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; gold, silver and other metal smelting; NdFeB rare earth smelting; carbide, diamond smelting; salt water, potassium electrolysis made caustic soda, potash, sodium system; fire electric heating material, as well as other types of high-power DC power supply.

20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing 0

AC Input voltage 220v
frequency 50/60hz
phase single  phase
output current 0~20a optional
voltage 0~2v adjustable
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
  reverse way automatic
  reverse time 0~99 hours adjustable

control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation

OPTIONAL FEATURE:

Reduced Ripple Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
Polarity Reversing manual reverse or automatic reverse
Digital Ampere-Hour / Minute Meter achieve the current hour,current minute control,achieve the chemical solution automatically add
Computer analog Interface 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost
PLC +HMI control RS 485,Profibus,Profinet international standard interface
multi-period Timer Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle



20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing 1

20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing 2

20v 20a High Frequency Electrolysis Machine Switch Power Supply With Auto Reversing 3




1,Placing 20v 20a high frequency switch power supply with automatic reversing and keep the body stability; ensure good ventilation.
2,Checking electrolysis rectifier out cover if loosing.
3,Connecting shell to ground to prevent static electricity.
4,Conecting the AC input wire
5,Connecting the DC output copper bars
6,Connecting the remote control box,if local control ,skip this step
7,Turn on air switch, then the fan starts to rotate and the power indicator light.
8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10,Disconnect the air switch, turn off the power
