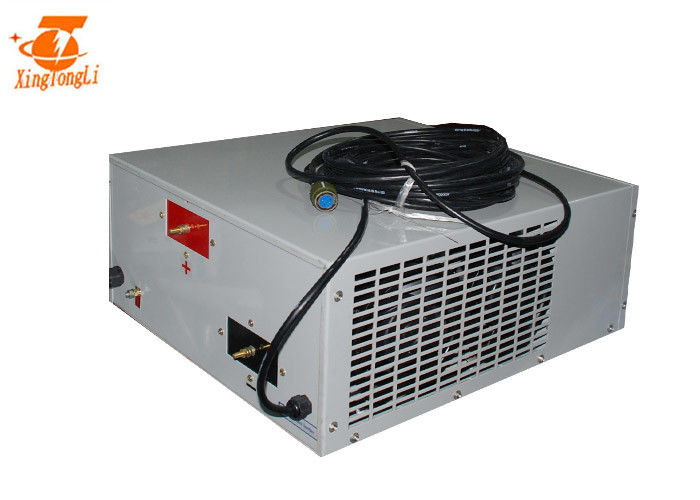

500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase

500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase

    • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase
    • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase
    • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase
    • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase
    • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase
  • 500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase

    Product Details:

    Place of Origin: China
    Brand Name: xingtongli
    Certification: ISO CE
    Model Number: GKD500-20CVC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: US$ 1500~1900/unit
    Packaging Details: Single wooden case packing size:775*595*915mm Weight:114kg
    Delivery Time: 10~15 work days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 150units/month
    Contact Now
    Detailed Product Description
    Product Name: Electrocoagulation Waste Water Treatment Rectifier Input Voltage: AC 380V
    Phase: 3 Phase Output Voltage: DC 0~500v Adjustable
    Output Current: DC 0~20A Adjustable Work Mode: CC CV
    Size: 665*490*270mm Weight: 60kg
    Color: Grey

    500v 20a high voltage ac to dc electrocoagulation waste water treatment power supply



    Description:



    At present, the method of effectively suppressing plate passivation is to replace the DC current with pulse current power supply and reduce the electrolytic polarization. The intermittent period of pulse current can cause the electrolyzed metal ions to react fully with OH- in the water to form a flocculant, and with the water out of the electrode area, thereby reducing the metal ion oxidation film probability. Substrate commutation can periodically change the direction of polarization, damage the fixed polarization region and effectively inhibit the passivation.



    Electrocoagulation waste water treatment equipment intruduction:
    Electrocoagulation method (waste) water treatment equipment is water treatment equipment. It uses principle of electrolysis and coagulation, to make multiple physical and chemical effects towards pollution (waste) water pollutants in the redox, neutralization, condensation, air separation and other, which rapid completion of sewage (waste) water treatment. With advantages of easy maintenance, high degree of automation, automatic plate cleaning, processing efficiency and stability, small workplace, high processing speed and so on.



    electrocoagulation waste water treatment rectifier specification and parameter:



     Input voltage

    three phase 380V AC
    Output voltage 0~500v adjustable
    Output current 0-20A adjustable
    Voltage stability ≤1%
    Current stability ≤1%
    Ripple factor 1%-2%
    Efficiency ≥90%
    Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
    Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
    Cooling system Air cooling/Water cooling
    Control method Manual/PLC
    Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
    Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
    Operating temperature -20-50℃
    Ambient temperature -30-65℃
    Ambient humidity ≤90%
    Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation

    500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase

    500V 20A Ac To Dc Electrocoagulation Water Treatment System Rectifier 3 Phase

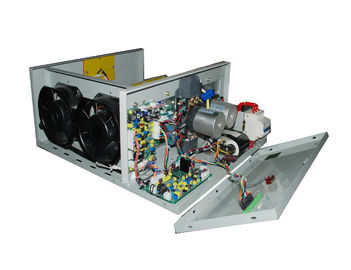

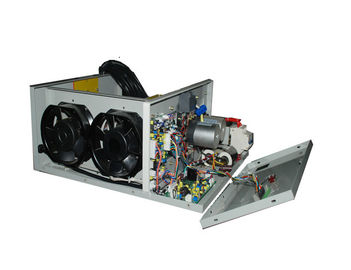

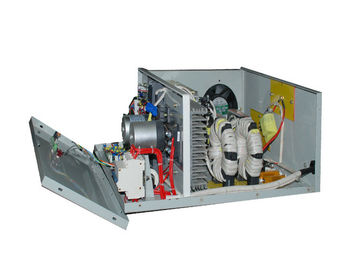

    Cabinet:

    Electrocoagulation waste water treatment rectifier adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

    Structure:

    Electrocoagulation waste water treatment rectifier with reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

    Radiator:

    radiator capacity expanded 1.5 times,make sure better cooling effect

    switch control way:

    adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

    Main transformer:

    Electrocoagulation waste water treatment rectifier adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

    Core & Schottky diode:

    core capacity expanded 1.5 times

    schottky diode expands 4 times



    Board :

    all control boards did anticorrosion treatment with imported three defense lacquer

    IGBT:

    IGBT capacity expanded 3 times,make the power supply more reliable
