220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply
  • 220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply
  • 220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply
  • 220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply

220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-10CVC
Product Details
Color:
Black
Input Voltage:
220v
Phase:
1 Phase
Output Voltage:
DC 0~12V Adjustable
Output Current:
DC 0~10A Adjustable
Size:
273*220*88mm
Weight:
8kg
Control:
Local Panel Control
High Light:

electroplating rectifier

,

dc rectifier for electroplating

,

220v AC Metal Plating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 690*550*520mm Weight:55kg
Delivery Time
3~5 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 units/month
Product Description

220v AC single phase small high accuracy gold silver metal plating rectifier 12v 10a



gold plating rectifier features:

  • Our gold plating rectifier uses famous brand components and international advanced full bridge inverter technology of precision machining, so that the performance of the whole AC to DC rectifier is stable,quality is more reliable.
  • Whole gold plating rectifier has the function of over voltage, over current, over temperature, short circuit, equal and automatic protection alarm function and soft start function. And can be equipped with time control and computer interface.
  • DC output waveform is high frequency square waveform, ripple factor less than 1%, can increase plating, refuse passivation, enhance the gloss of the plating coating surface and the core of the dark corner of plating coating. And can reduce the loss of raw materials, to achieve a variety of special requirements of electroplating industry.

gold plating rectifier cooling method:

  • High frequency switching power supply gold plating rectifier adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.

gold plating rectifier advantage of small size and energy saving:

  • Small size, light weight, the whole gold plating rectifier machine use a full range of anti-corrosion technology, enhanced the product’s anti corrosion ability, extend the service life.
  • High efficiency, energy saving, work efficiency can reach more than 90%, any voltage current ratio is always linear matching. Eliminating the need for traditional rectifiers regulator and the main transformer loss, energy saving in more than 35%, greatly reducing the electro plating cost, which is the most sensible choice for surface treatment plating machine industry
  • 220v AC small gold plating rectifier 12v 10a ,silver plating power supply specification and parameter:

    Plating rectifier Input voltage Single phase 110V/220V AC
    Output voltage 0~12v adjustable
    Output current 0-500A adjustable
    Voltage stability ≤1%
    Current stability ≤1%
    Ripple factor 1%-2%
    Efficiency ≥90%
    Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
    Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
    Cooling system Air cooling
    Control method local panel control
    Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
    Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
    Operating temperature -20-50℃
    Ambient temperature -30-65℃
    Ambient humidity ≤90%

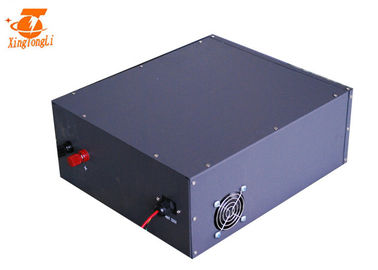

220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply 0

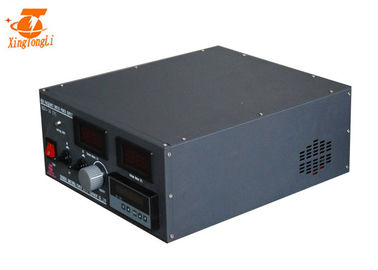

220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply 1

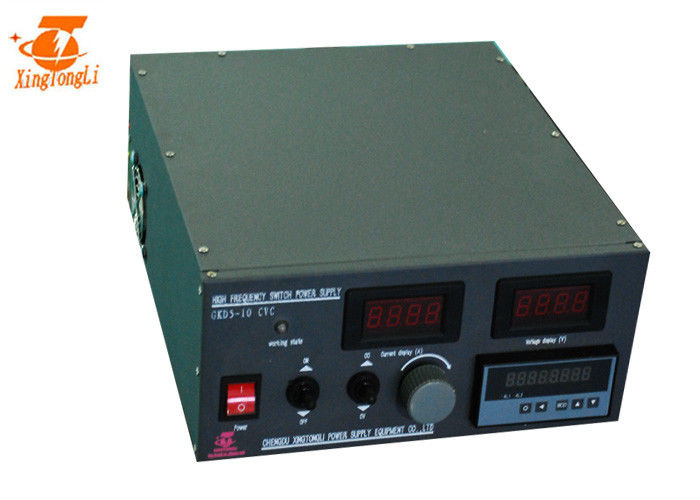

220v AC Single Phase Metal Plating Rectifier , Silver Gold Plating Power Supply 2

Cabinet:

220v AC small gold plating rectifier 12v 10a ,silver plating power supply adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

220v AC small gold plating rectifier 12v 10a ,silver plating power supply amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

220v AC small gold plating rectifier 12v 10a ,silver plating power supply all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

220v AC small gold plating rectifier 12v 10a ,silver plating power supply  IGBT capacity expanded 3 times,make the power supply more reliable
