Electrolysis Power Supply
>
|
| Place of Origin | China |
| Brand Name | xingtongli |
| Certification | ISO CE |
| Model Number | GKDH10-500CVC |

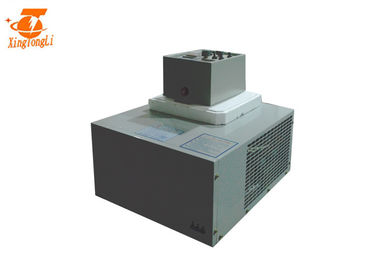

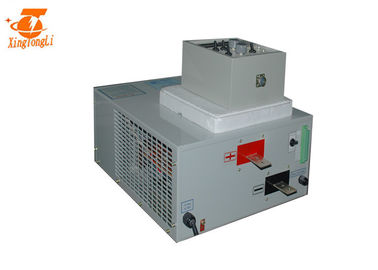

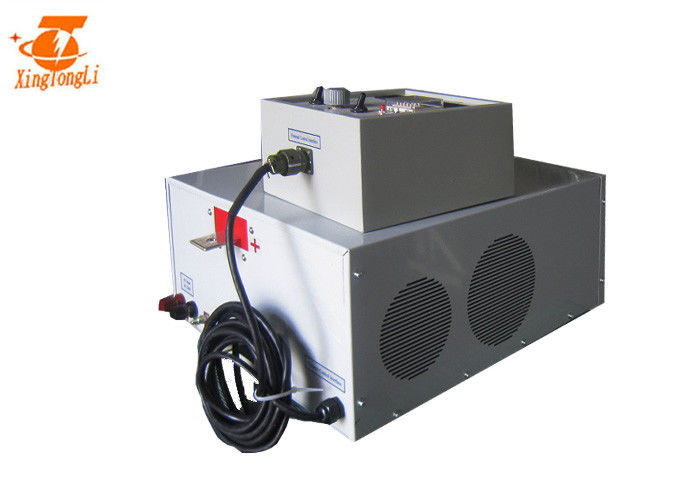

10v 500a high frequency dual polarity rectifier , switch power supply with automatic reversing
Application:
Mainly for non-ferrous metal electrolysis: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; gold, silver and other metal smelting; NdFeB rare earth smelting; carbide, diamond smelting; salt water, potassium electrolysis made caustic soda, potash, sodium system; fire electric heating material, as well as other types of high-power DC power supply.
| AC Input | voltage | 380v |
| frequency | 50/60hz | |
| phase | three phase | |
| output | current | 0~500a optional |
| voltage | 0~10v adjustable | |
| frequency | 40khz | |
| effiencicy | ≥89% | |
| voltage stability | ≤1% | |
| current stability | ≤1% | |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) | |
| adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range | |
| reverse way | automatic | |
| reverse time | 0~99 hours adjustable | |
| control part | cooling system | air cooling /water cooling/mixed water & air cooling |
| control method | local panel control/remote control box/ PLC | |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. | |
| Protection method | Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc. | |
| use environment | Operating temperature | -20-50℃ |
| Ambient temperature | 30-65℃ | |
| Ambient humidity | ≤90% | |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
OPTIONAL FEATURE 10v 500a high frequency dual polarity rectifier , switch power supply with automatic reversing:
| Reduced Ripple | Ripple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point |
| Polarity Reversing | manual reverse or automatic reverse |
| Digital Ampere-Hour / Minute Meter | achieve the current hour,current minute control,achieve the chemical solution automatically add |
| Computer analog Interface | 0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost |
| PLC +HMI control | RS 485,Profibus,Profinet international standard interface |
| multi-period Timer | Timers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle |
| 1,Placing 10v 500a high frequency dual polarity rectifier , switch power supply with automatic reversing and keep the body stability; ensure good ventilation. |
| 2,Checking electrolysis rectifier out cover if loosing. |
| 3,Connecting shell to ground to prevent static electricity. |
| 4,Conecting the AC input wire |
| 5,Connecting the DC output copper bars |
| 6,Connecting the remote control box,if local control ,skip this step |
| 7,Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10,Disconnect the air switch, turn off the power |
