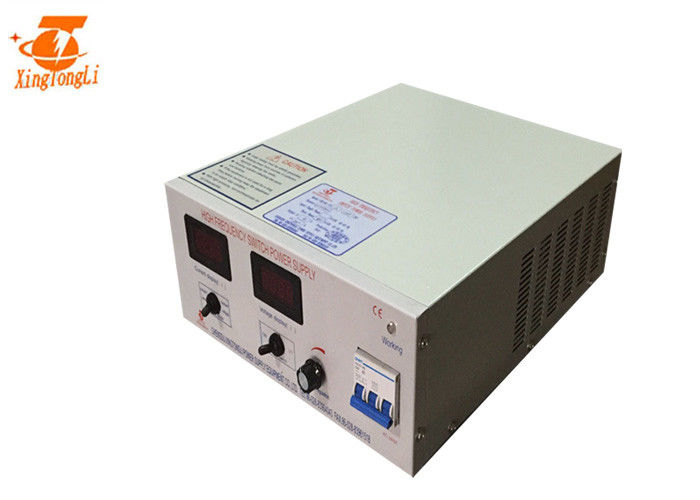

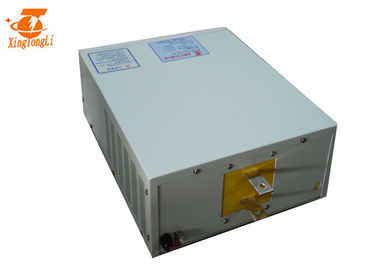

Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving
  • Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving
  • Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving

Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-200CVC
Product Details
Color:
Grey
Input Voltage:
220v
Phase:
1 Phase
Output Voltage:
DC 0~12V Adjustable
Output Current:
DC 0~200A Adjustable
Size:
520*395*165mm
Weight:
17kg
Control:
Local Panel Control
High Light:

electroplating rectifier

,

dc rectifier for electroplating

,

Rectifier Power Supply 12v 200a

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size:540*370*200mm Weight: 30kg
Delivery Time
3~5 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 units/month
Product Description

high frequency AC input 110v 220v rectifier , dc yellow white zinc plating rectifier power supply 12v 200a



Features:

  • Our dc yellow white zinc plating rectifier power supply 12v 200a uses famous brand components and international advanced full bridge inverter technology of precision machining, so that the performance of the whole dc yellow white zinc plating rectifier power supply 12v 200a is stable,quality is more reliable.

  • Whole dc yellow white zinc plating rectifier power supply 12v 200a  has the function of over voltage, over current, over temperature, short circuit, equal and automatic protection alarm function and soft start function. And can be equipped with time control and computer interface.

  • DC output waveform is high frequency square waveform, ripple factor less than 1%, can increase plating, refuse passivation, enhance the gloss of the plating coating surface and the core of the dark corner of plating coating. And can reduce the loss of raw materials, to achieve a variety of special requirements of electroplating industry.

Cooling method:

  • ddc yellow white zinc plating rectifier power supply 12v 200a adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.

dc yellow white zinc plating rectifier power supply 12v 200a advantage of small size and energy saving:

  • Small size, light weight, the whole dc yellow white zinc plating rectifier power supply 12v 200a use a full range of anti-corrosion technology, enhanced the product’s anti corrosion ability, extend the service life.

  • High efficiency, energy saving, work efficiency can reach more than 90%, any voltage current ratio is always linear matching. Eliminating the need for traditional rectifiers regulator and the main transformer loss, energy saving in more than 35%, greatly reducing the electro plating cost, which is the most sensible choice for surface treatment plating machine industry

  • dc yellow white zinc plating rectifier power supply 12v 200a specification and parameter:

    Plating rectifier Input voltage

    Single phase 110V/220V AC

    Output voltage

    0~18v adjustable

    Output current

    0-3000A adjustable

    Voltage stability

    ≤1%

    Current stability

    ≤1%

    Ripple factor

    1%-2%

    Efficiency

    ≥90%

    Stabilization mode

    Current stabilization/Voltage stabilization (Switchable easily)

    Adjustment range

    Voltage/Current from 0-100% continuously adjustable within rated range

    Cooling system

    Air cooling

    Control method

    local panel control

    Display contents

    Voltage meter/Current meter/Working/Over temp/Error, etc..

    Protection method

    Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..

    Operating temperature

    -20-50℃

    Ambient temperature

    -30-65℃

    Ambient humidity

    ≤90%

Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving 0
Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving 1



Zinc Plating Rectifier Power Supply 12v 200a High Frequency 1 Phase Energy Saving 2

Cabinet:
dc yellow white zinc plating rectifier power supply 12v 200a cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:
Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:
radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:
adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts
dc yellow white zinc plating rectifier power supply 12v 200a amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:
core capacity expanded 1.5 times
schottky diode expands 4 times


Board :
dc yellow white zinc plating rectifier power supply 12v 200a all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:
dc yellow white zinc plating rectifier power supply 12v 200a  IGBT capacity expanded 3 times,make the power supply more reliable
