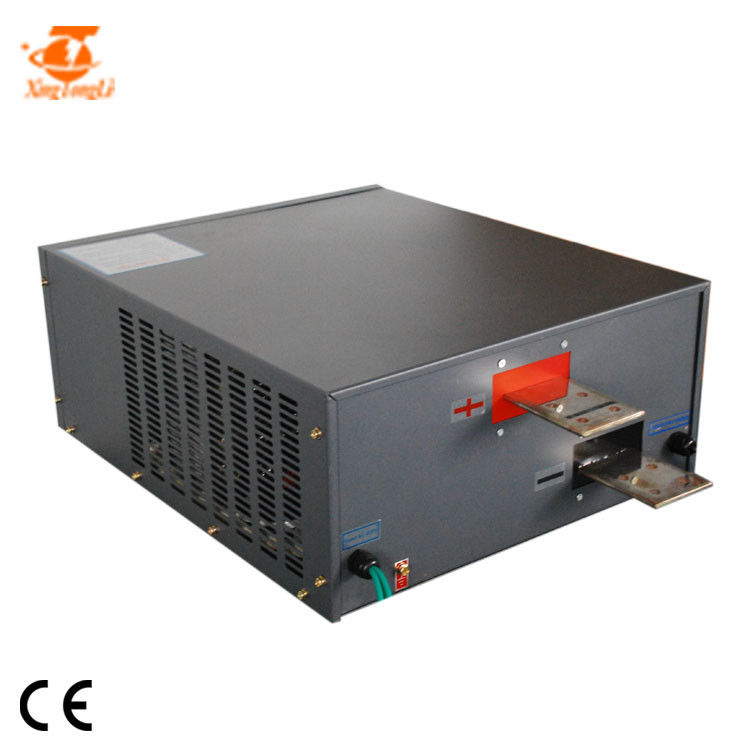

15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment

15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment

    • 15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment
    • 15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment
    • 15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment
    • 15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment
  • 15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Xingtongli
    Certification: CE
    Model Number: GKD(M)(H)15-1000CVC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD1100~1400/SET
    Packaging Details: Wooden case 760*540*440mm
    Delivery Time: 8~10 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 100 SET/month
    Contact Now
    Detailed Product Description
    Application: Electroplating Efficiency: >85%
    Control Way: Remote Control Cooling Way: Air Cooling
    Color: Black Type: AC To DC

    15V 1000A high frequency copper nickel plating rectifier power supply



    15V 1000A high frequency copper nickel plating rectifier power supply is used to electroplating. It's 5th generation high frenquency switching rectifier/power suuply/ Smaller and lighter compared with 4th generation rectifier.



    We have two different colors. Grey or black.





    1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


    2. Control mode: Local control or Remote control(the length of cable is determined by customers)


    3. Japan IGBT(the default choice) or Germany IGBT are adopted


    4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


    5. Easy to operate and repair



    Some pics was followed

    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment

    Remote control box



    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment







    Application

    Different volt and current has different applications

    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment



    Specification

    SPECIFICATIONS FOR GKD(M)(H)15-1000CVC
    Input AC 380V±10% 3phase 50/60Hz
    Output DC Volt 0~15V             Adjustable
    Current 0~1000A          Adjustable
    Power 15KW
    Efficiency >85%
    Switching Frequency 20KHz
    Protection Short circuit protection
    Overheating protection
    Phase lack protection
    Input over/low voltage protection
    Working Condition
    (Temperature)
    -10℃~50℃ Control mode Panel control
    Remote control
    Net weight 30kg Working mode Constant Voltage(CV)
    Constant Current(CC)
    Dimension(mm)

    525*410*240

    Cooling way Air cooling








    Other advantages

    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment



    1. Cabinet
    a: Adopting completely digitalized machining
    b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
    c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
    d: Radiator gets better cooling effect because of its 1.5 times capacity.



    2 Electric control system
    a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
    b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
    c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



    3 Schottky Barrier Diode
    a: It has been expanded 4 times.



    4 All the controlling boards get antiseptic treatment with imported lacquer.



    How to install rectifier
    This is installation way for remote control rectifier. Not only this way.
    1. To connect copper bar with bath/tank
    2. To ensure power supply/rectifier is grounded
    3. To ensure there is enough water for water cooling type power supply/rectifier
    4. We advice that all rectifiers should be isolated to increase of its life.

    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment

    15V 1000A High Frequency Switching Power Supply For Copper Nickel Plating Equipment



    Our service



    Pre sale service
    1. To answer your questions within 24hours.
    2. 3D design picture and wiring diagram can be offered.
    3. Inner part pictures can be offered
    4. OEM and ODM is accepted

    After sale service
    1. To resolve your problems within 24hours.
    2. Replacement parts can be offered for free within 1 year warranty
    3. The machine is damaged by quality and can be changed for free within 1 year
    4. The client can check the rectifier before the factory by themselves or test video can be offered



    FAQ

    1. Q: Are u factory or tranding company?

    A: We are factory can offer more cheaper price but the same good quality.

    2. Q: Where are ur company?

    A: Our company is located in Chengdu City which is one of the fastest growing city in China.

    3. Q: If I want to visit your factory, how can I go to there?

    A: You just need to tell us when do come to our company, we will pick u up at the airport.

    4. Q: How can I do a payment?

    A: You can choose T/T, L/C, D/A, D/P and other payments .

    5. Q: How can I get my goods?

    A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

    6. Q: If problems of my rectifiers occured, what should I do?

    A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
