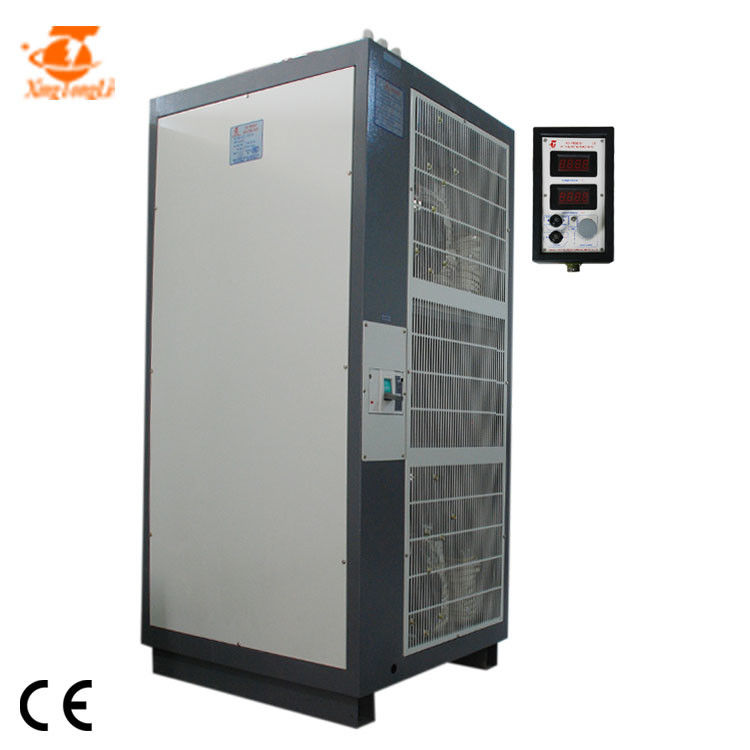

Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE

Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE

    • Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE
    • Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE
    • Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE
    • Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE
  • Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE

    Product Details:

    Place of Origin: China
    Brand Name: Xingtongli
    Certification: CE
    Model Number: GKD(M)(H)24-6000CVC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: USD6300~9600/SET
    Packaging Details: Wooden case 870*1010*1830mm
    Delivery Time: 18~22 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 100 SET/month
    Contact Now
    Detailed Product Description
    Application: Electroplating Efficiency: >85%
    Control Way: Remote Control Cooling Way: Water Cooling
    Color: Grey And Black Type: AC To DC

    24V 6000A water cooling hard chrome electrolating power supply rectifier



    24V 6000A water cooling hard chrome electrolating power supply rectifier is used to electroplating or anodizing. 24V also can be used to electroplate hard chrome.



    The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.



    Specification



    SPECIFICATIONS FOR GKD(M)(H)24-6000CVC
    Input AC 380V±10% 3phase 50/60Hz
    Output DC Volt 0~24V Adjustable
    Current 0~6000A Adjustable
    Power 144KW
    Ripple <5%
    Efficiency >85%
    Switching Frequency 20KHz
    Protection Short circuit protection
    Overheating protection
    Phase lack protection
    Input over/low voltage protection
    Working Condition
    (Temperature)
    -10℃~50℃ Control mode Panel control
    Remote control
    Net weight 385kg Working mode Constant Voltage(CV)
    Constant Current(CC)
    Dimension(mm) 700*700*1260mm Cooling way Water cooling



    Some pics was followed

    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE

    Remote control box



    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE





    Application

    Different volt and current has different applications

    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE






    Features


    1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


    2. Control mode: Local control or Remote control(the length of cable is determined by customers)


    3. Japan IGBT(the default choice) or Germany IGBT are adopted


    4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


    5. Easy to operate and repaire

    electroplating rectifier.jpg






    Other advantages

    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE



    1. Cabinet
    a: Adopting completely digitalized machining
    b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
    c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
    d: Radiator gets better cooling effect because of its 1.5 times capacity.



    2 Electric control system
    a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
    b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
    c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



    3 Schottky Barrier Diode
    a: It has been expanded 4 times.



    4 All the controlling boards get antiseptic treatment with imported lacquer.



    How to install rectifier
    This is installation way for remote control rectifier. Not only this way.
    1. To connect copper bar with bath/tank
    2. To ensure power supply/rectifier is grounded
    3. To ensure there is enough water for water cooling type power supply/rectifier
    4. We advice that all rectifiers should be isolated to increase of its life.

    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE

    Water Cooling Hard Chrome Electrolating Power Supply Rectifier 24V 6000A CE



    Our service



    Pre sale service
    1. To answer your questions within 24hours.
    2. 3D design picture and wiring diagram can be offered.
    3. Inner part pictures can be offered
    4. OEM and ODM is accepted

    After sale service
    1. To resolve your problems within 24hours.
    2. Replacement parts can be offered for free within 1 year warranty
    3. The machine is damaged by quality and can be changed for free within 1 year
    4. The client can check the rectifier before the factory by themselves or test video can be offered





    FAQ

    1. Q: Are u factory or tranding company?

    A: We are factory can offer more cheaper price but the same good quality.

    2. Q: Where are ur company?

    A: Our company is located in Chengdu City which is one of the fastest growing city in China.

    3. Q: If I want to visit your factory, how can I go to there?

    A: You just need to tell us when do come to our company, we will pick u up at the airport.

    4. Q: How can I do a payment?

    A: You can choose T/T, L/C, D/A, D/P and other payments .

    5. Q: How can I get my goods?

    A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

    6. Q: If problems of my rectifiers occured, what should I do?

    A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
