12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply
  • 12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply
  • 12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply
  • 12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply

Place of Origin China
Brand Name Xingtongli
Certification CE
Model Number GKD(M)(H)12-100CVC
Product Details
Application:
Copper Electroplating Power Supply
Efficiency:
>85%
Control Way:
Panel Control
Cooling Way:
Air Cooling
Color:
Black
Type:
AC To DC
High Light:

pcb plating rectifier

,

pcb electroplating power supply

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Wooden case
Delivery Time
5~7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description



12V 100A single phase PCB copper electroplating rectifier machine



6V 100A single phase PCB copper electroplating rectifier machine is used to electroplating. This rectifier adopted our newest technology. It's pure dc and will not add any extra fees from customer. Smaller and lighter.



Ampere-min meter is extra parts. It has doing and cumulative time functions.



Some pics was followed

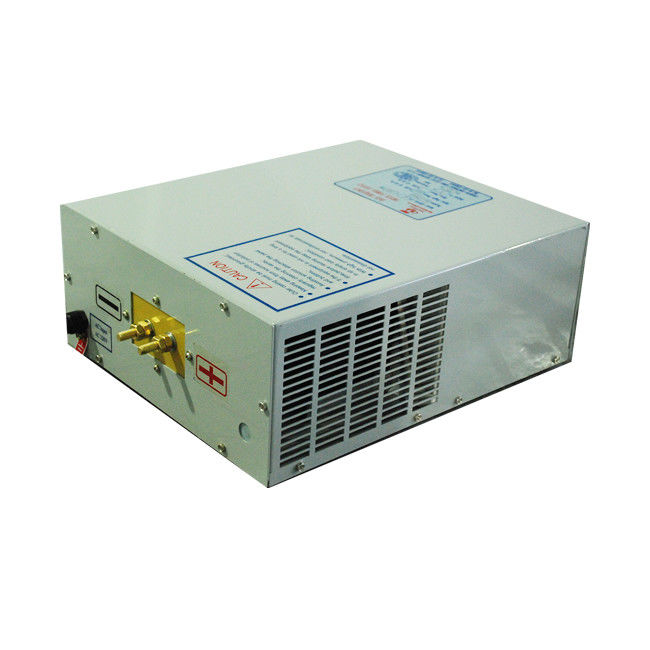

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 0

Back

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 1

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 2



Application

Different volt and current has different applications

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 3



Specification

SPECIFICATIONS FOR GKD(M)(H)12-100CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~12V            Adjustable
Current 0~100A        Adjustable
Power 1.2KW
Efficiency >85%
Ripple <5%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 7.5kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 273*222.5*88 Cooling way Air cooling

Features
electroplating rectifier.jpg


1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire



Other advantages





1. cabinet

anwer:  fully digital processing

b: The rectifier has good structural strength and corrosion resistance after phosphating, galvanizing and plastic spraying.

c: Reasonable structure design, isolated inverter design, rectifier part, because of its neat assembly and disassembly.

d: The capacity of the radiator is 1.5 times, so the heat dissipation effect is better.





2 electrical control system

Answer: the rectifier adopts full bridge phase-shift soft switch control, which can ensure the lowest power consumption of IGBT. The capacity of IGBT is three times larger.

b: Main transformer. Using amorphous core to improve transformer efficiency and cool transformer not only reduces the weight of rectifier, but also enhances the stability and reliability of rectifier. In its primary stage, it adopts series isolated capacitor.

c: The total power of the core is increased by 1.5 times by using the magnetic bias auto correction circuit.





3 Schottky barrier diode

A: it has expanded fourfold.





4. All control boards shall be anticorrosive treated with imported varnish.



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 5

12V 50A High Frequency Single Phase PCB Rectifier Copper Electroplating Power Supply 6



Our service



Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered



FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
