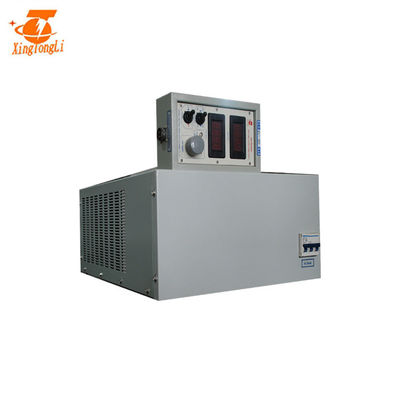

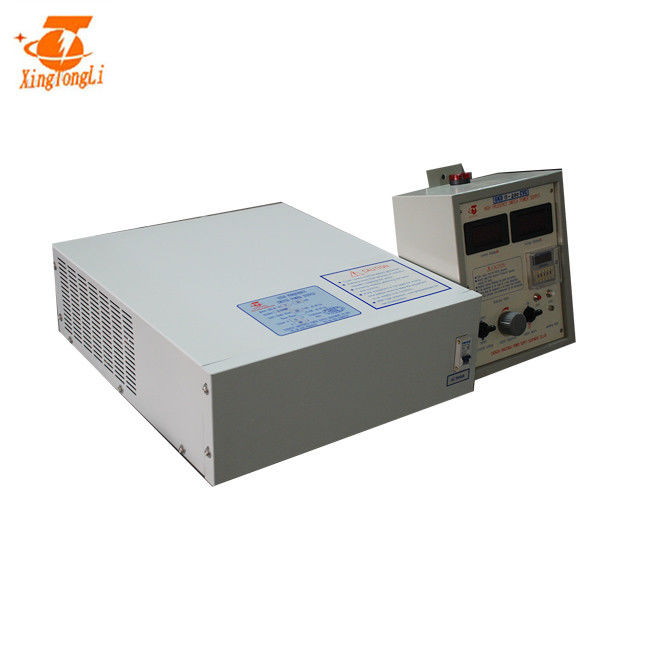

Phase Lack 12v 300a Igbt Plating Rectifier For Chrome
  • Phase Lack 12v 300a Igbt Plating Rectifier For Chrome
  • Phase Lack 12v 300a Igbt Plating Rectifier For Chrome

Phase Lack 12v 300a Igbt Plating Rectifier For Chrome

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD12-300CVC
Product Details
Product Name:
12V 300A IGBT Plating Rectifier For Chrome,copper,zinc,nickel,gold
Input Voltage:
AC 220V
Phase:
3 Phase
Output Voltage:
DC 0~12v Adjustable
Output Current:
DC 0~300A Adjustable
Work Mode:
CC CV
Size:
520*395*165mm
Weight:
25KG
Color:
Grey
High Light:

phase lack electroplating rectifier

,

12v 300a Igbt Plating Rectifier

,

Igbt Plating Rectifier For Chrome

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
380$ ~800$
Packaging Details
Single wooden case packing size:520*395*165mm Weight:25kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300units/month
Product Description

12V 300A IGBT plating rectifier for chrome,copper,zinc,nickel,gold



Specification



SPECIFICATIONS FOR GKD12-300CVC
Input AC 220V±10% 1 phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~300A Adjustable
Power 3.6KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 25kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 520*395*165mm Cooling way

air

cooling



Product:





 Features

1. Small size, light weight, electricity-saving, high accuracy



2. The communication interface can be provided



3. Duration control can be provided



4. Douch screen can be provided



5. Control mode: Local control or Remote control(the length of cable is determined by customers)



6. Japan IGBT(the default choice) or Germany IGBT are adopted



7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function



8. Easy to operate and repaire





Application:

Phase Lack 12v 300a Igbt Plating Rectifier For Chrome 0

Phase Lack 12v 300a Igbt Plating Rectifier For Chrome 1



 Installation



Phase Lack 12v 300a Igbt Plating Rectifier For Chrome 2

produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

Phase Lack 12v 300a Igbt Plating Rectifier For Chrome 3

 zinc plating process:





Zinc plating refers to a surface treatment technology that coats a layer of zinc on the surface of metal, alloy or other materials for aesthetics and rust prevention. The main method used is hot-dip galvanizing.

Zinc is soluble in acid and alkali, so it is called amphoteric metal. Zinc hardly changes in dry air. In humid air, a dense basic zinc carbonate film will be formed on the zinc surface. In an atmosphere containing sulfur dioxide, hydrogen sulfide, and marine atmospheres, zinc has poor corrosion resistance, especially in an atmosphere containing organic acids at high temperature and high humidity, the zinc coating is easily corroded. The standard electrode potential of zinc is -0.76V. For the steel substrate, the zinc coating is an anodic coating. It is mainly used to prevent corrosion of steel. The quality of its protective performance is closely related to the thickness of the coating. After the zinc coating is passivated, dyed or coated with a light protectant, its protective and decorative properties can be significantly improved.
