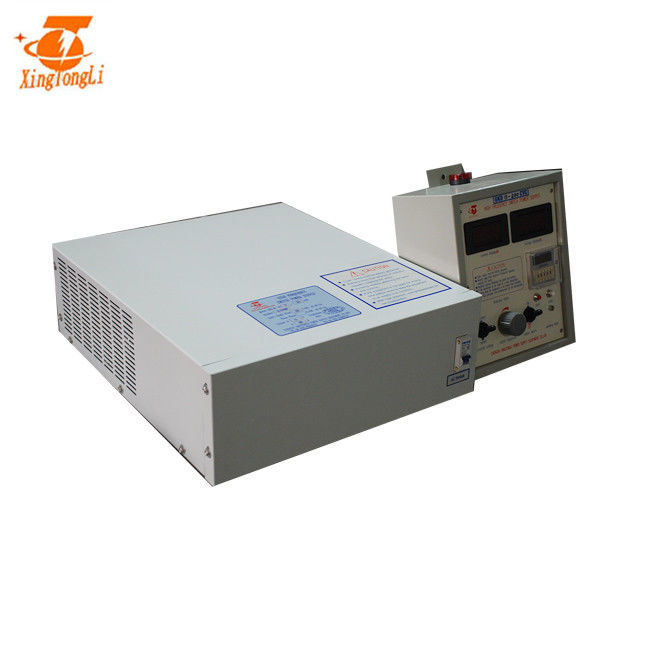

Single Phase 10V 300A zinc plating rectifier
  • Single Phase 10V 300A zinc plating rectifier

Single Phase 10V 300A zinc plating rectifier

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD10-300CVC
Product Details
Product Name:
10V 300A Rectifier For Zinc Plating
Input Voltage:
AC 220V
Phase:
1 Phase
Output Voltage:
DC 0~10v Adjustable
Output Current:
DC 0~300A Adjustable
Work Mode:
CC CV
Size:
520*395*165mm
Weight:
18kg
Color:
Grey
High Light:

300A Zinc Plating Rectifier

,

300A Zinc Plating Rectifier

,

Galvanizing Single Phase Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
418$ ~800$
Packaging Details
Single wooden case packing size:650*470*200mm Weight: 25kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100units/month
Product Description

10V 300A rectifier for zinc plating





Galvanizing/zinc plating is welcomed by many of our customers because it can produce aesthetically acceptable coatings and can achieve good distribution on complex geometries. Usually used for ferrous parts (especially bolts, studs, flanges, metal plates, etc.)

Compared with other metals, zinc is relatively cheap and easy plated metal, and also is a low corrosion plating layer, while widely used to protect steel parts, in particular to prevent atmospheric corrosion, as well as used for decoration filed. Plating techniques include: tank plating (or rack electroplating), barrel electro plating (for small parts), automatic plating and continuous plating (for wire, strip)



Specification



SPECIFICATIONS FOR GKD10-300CVC
Input AC 380V±10% 1 phase 50/60Hz
Output DC Volt 0~10V Adjustable
Current 0~300A Adjustable
Power 3KW
Efficiency >85%
output Frequency 40KHz fixed
output ripple 5%
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 15kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 420*310*145mm Cooling way

air

cooling



 10V 300A rectifier for zinc plating rectifier Features



Cabinet:

Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable





10V 300A rectifier for zinc plating rectifier

Single Phase 10V 300A zinc plating rectifier 0









THE DIFFERENCE BETWEEN SCR & IGBT SWITCH RECTIFIER



1, efficiency

SCR: 70%

IGBT:90%

2,Transformer

SCR:Power frequency transformer, large volume about 200kg

IGBT:without Power frequency transformer

3,Energy saving efficiency

SCR: bad

IGBT: energy saving about 15%-30%

4, start/stop with load

SCR: can’t

IGBT: can

5,control circuit

SCR:Complex, request synchronous and difficult to integrate

IGBT:use the simple integrated circuit board, and anti-corrosion treatment completely closed.

6,constant current accuracy

SCR:<5%

IGBT:<1%

7,cooling way

SCR: water/oil/air cooling

IGBT:water/air cooling

8,work frequency

SCR:50HZ

IGBT:20KHZ

9,control way

SCR:Phase shift trigger

IGBT: PWM

10,output DC

SCR:half wave

IGBT:High density DC square wave

11,Disturbance to power grid

SCR: large,Not easy to eliminate

IGBT: small,easy to eliminate

12,size and weight

SCR: large size and heavy

IGBT: small and light weight

13,Allowable fluctuation range of input voltage

SCR: ±10%

IGBT:±15%





10V 300A rectifier for zinc plating rectifier Installation



Single Phase 10V 300A zinc plating rectifier 1





1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier



produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.
