Digital Display 24V 300A Electroplating Power Supply
  • Digital Display 24V 300A Electroplating Power Supply
  • Digital Display 24V 300A Electroplating Power Supply

Digital Display 24V 300A Electroplating Power Supply

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD24-300CVC
Product Details
Product Name:
24V 300A Electroplating Power Supply
Input Voltage:
AC 220V
Phase:
3 Phase
Output Voltage:
DC 0~24v Adjustable
Output Current:
DC 0~300A Adjustable
Work Mode:
CC CV
Size:
580*420*220mm
Weight:
35kg
Color:
Black
High Light:

300A Electroplating Power Supply

,

24V Electroplating Power Supply

,

7.2kw plating power supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
700$ ~980$
Packaging Details
Single wooden case packing size:69*55*52mm Weight: 45kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300units/month
Product Description

24V 300A electroplating power supply



The main circuit of the electroplating power supply includes the main circuit (composed of power frequency three-phase AC input, diode rectifier bridge, filter inductor capacitor, high frequency full bridge inverter, high frequency transformer, output current doubler rectifier filter link), control circuit, drive circuit, protect the circuit. The electrical block diagram of the entire system is shown in the figure. The load of the system is an electroplating bath, which is inductive. Since the resistance of the electroplating solution is very small and the passing current is large, an overcurrent protection circuit must be designed.


24V 300A electroplating power supply Specification



SPECIFICATIONS FOR GKD24-300CVC
Input AC 220V±10% 3 phase 50/60Hz
Output DC Volt 0~24V Adjustable
Current 0~300A Adjustable
Power 7.2KW
Efficiency >85%
output Frequency 40KHz fixed
output ripple 3% peak value
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 35kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 69*55*52mm Cooling way

air

cooling




24V 300A electroplating power supply feature:



The small energy-saving high-frequency air-cooled switching power supply adopts the internationally advanced IGBT module full-bridge inverter power supply technology. Transformers using nanocrystalline soft magnetic materials are small in size, light in weight, tightly coupled, uniform current distribution, and easy to assemble. It effectively solves the interference of the power grid on the power supply and the influence of the power supply on the harmonics of the power grid, improves the reliability of the power supply, and increases the mean time between failures of the power supply. This product can be widely used in electroplating, electrolysis, charging, surface oxidation treatment and other industries. This product fully meets the national safety requirements for this type of product. The control process of the whole machine is completely controlled by a high-precision microcomputer CPU with high precision and fast operation. The forced air-cooling duct is completely isolated from the control circuit to prevent the electronic components from being corroded by acid mist and greatly improve the reliability of equipment operation.

Features of small energy-saving high-frequency air-cooled switching power supply
1. Significant power saving, 10% to 30% power saving, and efficiency above 87%
2. All equipment has passed strict inspection and long-term aging test before leaving the factory
3.Small size, light weight, simple operation, convenient installation and maintenance
4. Digital display of current, voltage and working time
5. Constant voltage and constant current control options
6. With computer interface function (optional


Product picture:

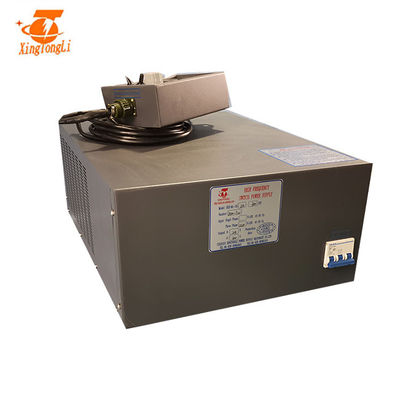

Digital Display 24V 300A Electroplating Power Supply 0

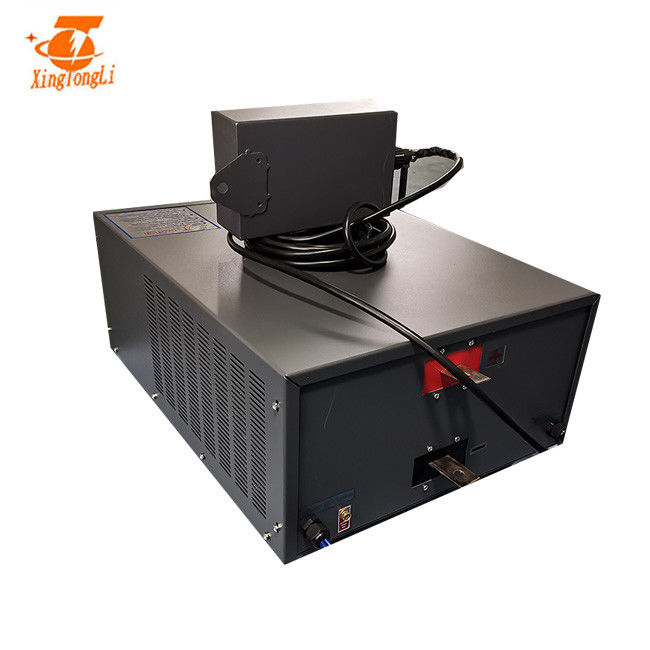

Digital Display 24V 300A Electroplating Power Supply 1

Digital Display 24V 300A Electroplating Power Supply 2











Installation



Digital Display 24V 300A Electroplating Power Supply 3





produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

Digital Display 24V 300A Electroplating Power Supply 4
