Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface
  • Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface
  • Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface
  • Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface
  • Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface

Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-150CVC
Product Details
Input Voltage:
220V
Phase:
Single Phase
Control:
Remote Control Box With 6 Meters Control Cable
Cooling:
Forced Air Cooling
Size:
420*310*145mm
Weight:
12kg
Product Name:
Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface
Accuracy:
CC CV +-1%
High Light:

IGBT DC Plating Rectifier

,

150A DC Plating Rectifier

,

20mA Interface Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 440*380*190mm Weight:19kg
Delivery Time
3~5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 units/month
Product Description

small IGBT DC plating rectifier 150A 12V with 4~20mA interface​



Specification



SPECIFICATIONS FOR GKD12-150CVC
Input AC 220V±10% 1phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~150A Adjustable
Power 2.4KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 15kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm)

49*39*19cm

Cooling way air cooling



PCB IGBT plating DC  rectifier  12v 100a  Picture:

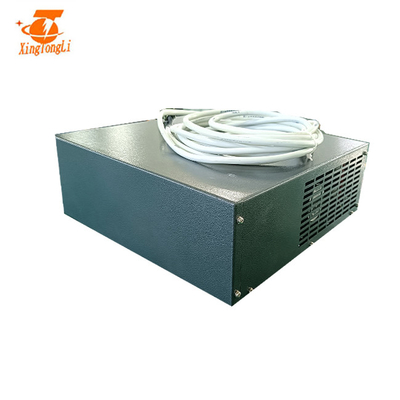

Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface 0

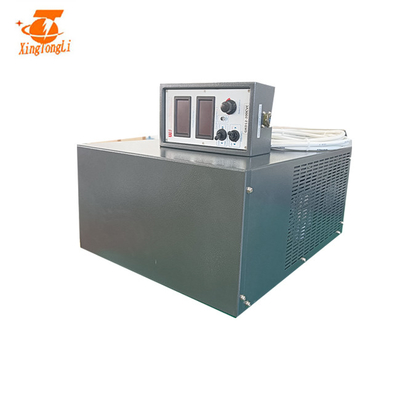

Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface 1



How to choose PCB plate plating rectifier ?



To select PCB plate plating rectifier has three requirements:
1, Meet the specifications required by plating process, including dc power supply power, waveform index, adjustable current and voltage range, etc.;
2, PCB plate plating power supply itself reliability power supply, which mainly refers to structure reasonable, security and line features, cooling methods;
3, DC power supply cost performance.

Determine what kind of PCB plate plating rectifier suitable for you:

Determining plating type and and what kind of dc power supply the plating tanks shall use is the implementation and the first important work in electroplating production. There are 2 methods to determine suitable dc power supply in the actual plating production:
One: according to plating liquid solution to determine volume current density;
Two: calculated according to the plating area to get plating current density per unit.

The so-called volume current density, it is based per liter of plating solution allowed to pass maximum current to adjust entire plating tank current intensity, to determine the maximum power supply output and the conventional output.

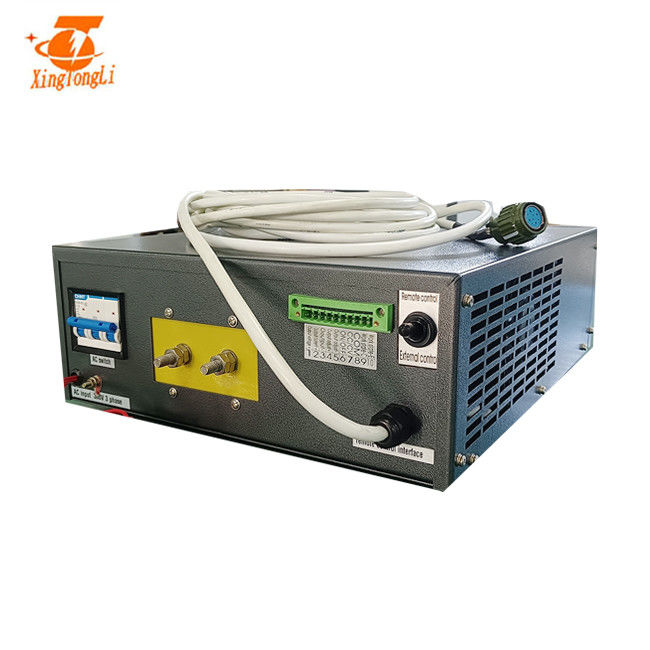

Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface 2



small IGBT DC plating rectifier 150A 12V with 4~20mA interface​ advantages



adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability



Core & Schottky diode:



core capacity expanded 1.5 times



schottky diode expands 4 times



Board :



all control boards did anticorrosion treatment with imported three defense lacquer



IGBT:



IGBT capacity expanded 3 times,make the power supply more reliable



Small IGBT DC Plating Rectifier 150A 12V With 4~20mA Interface 3





1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier



produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.
