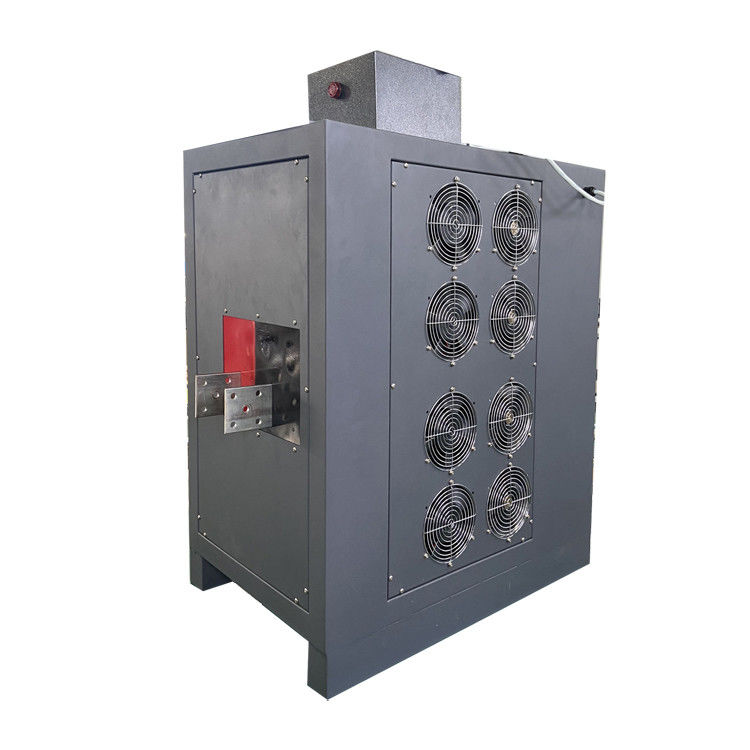

Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW
  • Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW
  • Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW
  • Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW
  • Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW
Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW

Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW

Place of Origin China
Brand Name Xingtongli
Certification CE ISO9001
Model Number GKD45-2000CVC
Product Details
Product Name:
45V 2000A 90KW Adjustable Electroplating Rectifier Metal Surface Treatment Chrome Nickel Zink Copper Plating Rectifier
Input Voltage:
AC 380V/415V/480V/220v±10% /110V Single
Output Current:
0-2000A
Output Voltage:
0-45V
Output Power:
90KW
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Overshoot:
No Overshoot, No Voltage Peak
Application:
Lab, Testing, Electroplating, Aging
MOQ:
1pcs
Warranty:
1 Year
High Light:

Copper Plating Rectifier 45V

,

Copper Plating Rectifier 90KW

,

Metal Surface Treatment Electroplating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1
Price
5500-8000$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500 SET PER MOUTH
Product Description

45V 2000A 90KW Adjustable Electroplating Rectifier Metal Surface Treatment Chrome Nickel Zink Copper Plating Rectifier

Introduction

we delve into the remarkable capabilities of the 45V 2000A DC Regulated Power Supply. Designed to meet the demanding requirements of various industrial and scientific applications, this power supply represents the pinnacle of performance, stability, and reliability.


The 45V 2000A DC Regulated Power Supply is a sophisticated piece of equipment that provides a precise and adjustable source of DC voltage and current. It has been engineered to deliver an astounding maximum voltage of 45 volts and an impressive maximum current output of 2000 amps. Such immense power ensures compatibility with a wide range of power-hungry devices and systems, making it a versatile tool for countless applications.

One of the most notable features of this power supply is its regulation capability. With a highly stable output voltage and
current, it ensures that your critical experiments, research, and industrial processes run smoothly and with utmost precision. The advanced regulation mechanisms guarantee minimal output fluctuations and excellent load regulation, enabling you to maintain optimal performance even in demanding scenarios.

The user-friendly interface of the 45V 2000A DC Regulated Power Supply allows for easy control and monitoring. Equipped with a comprehensive digital display, it provides real-time information on voltage, current, and other essential parameters.
Additionally, the integrated control panel enables precise adjustments, ensuring accurate settings for your specific needs.
To ensure the utmost safety, this power supply comes with various protection mechanisms. Overload protection guards against excessive current draw, while overvoltage protection shields your devices from voltage spikes. Moreover, short circuit protection ensures the longevity of the power supply by preventing damage during fault conditions.

The 45V 2000A DC Regulated Power Supply is constructed using high-quality components and robust engineering, guaranteeing durability and long-term reliability. It boasts efficient heat dissipation mechanisms to prevent overheating, allowing for prolonged operation without compromising performance.

In summary, the 45V 2000A DC Regulated Power Supply represents a formidable solution for applications requiring high power and precise control. Its exceptional voltage and current capabilities, coupled with advanced regulation and safety features, make it an invaluable asset in various industrial, scientific, and research settings. With this power supply at your disposal, you can confidently tackle even the most demanding projects with unmatched precision and stability.

Technical Data Sheet

Mode GKD45-2000CVC
AC Input AC 380V±15% 50HZ±1Hz
Interface RS232, RS485
Input frequency 50khz/60khz
Output current 2000A
Output voltage 45V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Air compressor test
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤0.1%FS
Protections OCP, OVP, OVL, OTP, UVP and current limit protections

Metal Surface Treatment Chrome Nickel Zinc Copper Plating Rectifier 45V 2000A 90KW 0

FEATURE:

1. Input voltage: AC 380V±15%, 50HZ±1Hz

2. Output voltage: 45V

3. Output power: 90KW

4. Operating temperature: -20℃~+45℃

5. Response time: ≤10ms

7. Equipped with input and output EMC filters, ripple ≤1%

8. PLC+HMI control, with RS485 communication.(optional function)



APPLICATION

Electroplating

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
