Electroplating Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Model Number | GKD8-1500CVC |

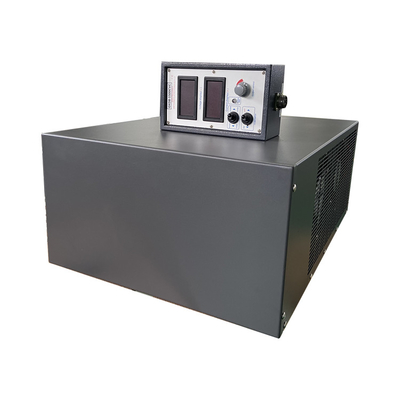

8V 1500A 12KW AC Input 415V 3 Phase Electroplating Rectifier with Remote Control Adjustable Plating Rectifier
Introduction
The 8V 1500A adjustable DC power supply is designed to deliver precise and controlled direct current (DC) output for various applications. With an input voltage of 8 volts and a maximum output current of 1500 amperes, this power supply provides a robust power source capable of delivering up to 12kilowatts (1,200 watts) of electrical power.
Equipped with a digital display, the power supply provides real-time feedback on the output voltage and current levels, enabling users to monitor the power supply's performance. Additionally, control knobs, buttons, or a keypad interface are included, allowing easy adjustment and fine-tuning of the output parameters.
The power supply incorporates various protection features, including overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection (SCP). These safeguards help prevent potential damage to the power supply and connected devices in case of abnormal operating conditions or unforeseen events.
The 8V 1500A adjustable DC power supply finds applications in a wide range of fields, including electronics testing, circuit prototyping, research and development, industrial processes, and educational environments. Its versatile nature and adjustable output capabilities make it an indispensable tool for powering and testing electronic components, circuits, and systems with precision and control.
Technical Data Sheet
| Mode | GKD8-1500CVC |
| AC Input | AC input 415V three phase |
| Input frequency | 50khz/60khz |
| Output current | 1500A |
| Output voltage | 8V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple/ Noise | ≤1% |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE
1. Input: 415V AC,Three Phase
2. Cooling Method: Forced air cooling
3. Independent Adjustment of Current and Voltage
4. Control System: remote control + digital display
5. Ripple: ≤1%
6. Remote Control with 30 meters wires
APPLICATION
Electroplating
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
