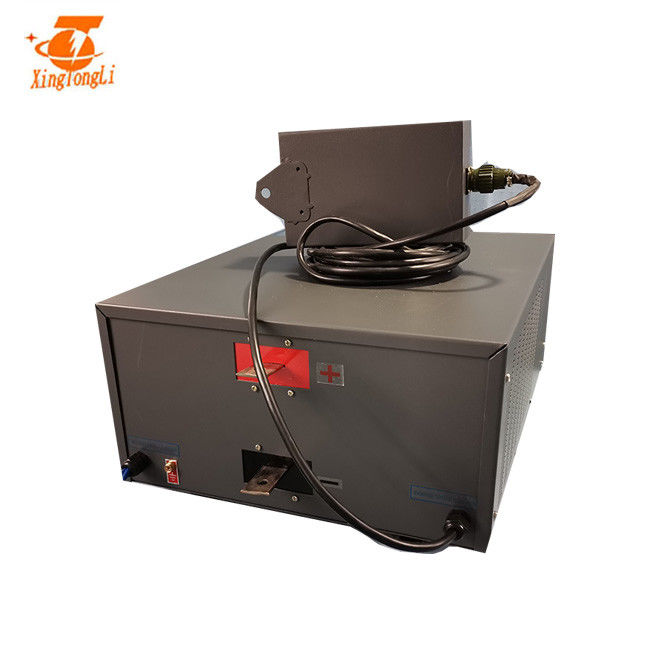

20v 300a Single Plating Rectifier For Copper Electroplating With 220v 3 Phase Input
  • 20v 300a Single Plating Rectifier For Copper Electroplating With 220v 3 Phase Input
  • 20v 300a Single Plating Rectifier For Copper Electroplating With 220v 3 Phase Input

20v 300a Single Plating Rectifier For Copper Electroplating With 220v 3 Phase Input

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number GKD(M)(H)20-300CVC
Product Details
Application:
Electroplating Power Supply
Efficiency:
>85%
Control Way:
Local Control/remote Control Box Control
Cooling Way:
Air Cooling
Color:
Black
Type:
AC To DC
Name:
20v 300a Single Pulse Rectifier
Output Frequency:
0~5khz
Output Wavefrom:
Square Wave
Highlight:

plating power supply

,

dc rectifier for electroplating

,

Single Plating Rectifier For Copper Electroplating

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Wooden case 605*415*240 mm
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description



20v 300a single Pulse rectifier for copper electroplating with 220v 3 phase input



Pulse rectifier electroplating is a powerful tool to control the electrodeposition of metal outer box. It uses time function to improve the physical and chemical properties of the coating by changing the pulse parameters, so as to save precious metals and obtain functional coating. Pulse rectifier electroplating belongs to modulation current electroplating, whose current is fluctuating or on / off DC impact current, so it is essentially on-off DC electroplating. There are many kinds of pulse current waveforms, usually square wave, triangle wave, zigzag wave, step wave and so on. However, in applications, the typical pulse power generation square wave pulse current is widely used.
