24V 200A Reversible Power Supply For Non Ferrous Metals Electrolysis

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKDH24-200CVC
Product Details
Product Name:
24V 200A Reversible Power Supply
Input Voltage:
AC 220V
Phase:
1 Phase
Output Voltage:
DC 0~24v Adjustable
Output Current:
DC 0~200A Adjustable
Work Mode:
CC CV
Reverse Model:
Manual And Automatic
Reverse Time:
0~9999 Minutes
Material:
SS304
High Light:

200A Reversible Power Supply

,

24V Reversible Power Supply

,

Non Ferrous Metals Electrolysis Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
418$ ~1200$
Packaging Details
Single wooden case packing size:650*470*200mm Weight: 16.5kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100units/month
Product Description
24V 100A reversible power supply



Application of high frequency 24V 100A reverse rectifier transformer

It is mainly used in the electrolysis of non-ferrous metals: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; smelting of gold, silver and other metals; re smelting of neodymium, iron and boron; hard alloy, diamond smelting; salt water and electrolytic potassium



Specification



SPECIFICATIONS FOR GKDH24-100CVC
Input AC 380V±10% 1 phase 50/60Hz
Output DC Volt 0~24V Adjustable
Current 0~200A Adjustable
Power 4.8KW
Efficiency >85%
output Frequency 40KHz fixed
reverse mode manual and automatic
reverse time 0~9999 minutes
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 16.5kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 230*370*380mm Cooling way

air

cooling



 24V 200A Reversible power supply Features



adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability



Core & Schottky diode:



core capacity expanded 1.5 times



schottky diode expands 4 times



Board :



all control boards did anticorrosion treatment with imported three defense lacquer



IGBT:



IGBT capacity expanded 3 times,make the power supply more reliable

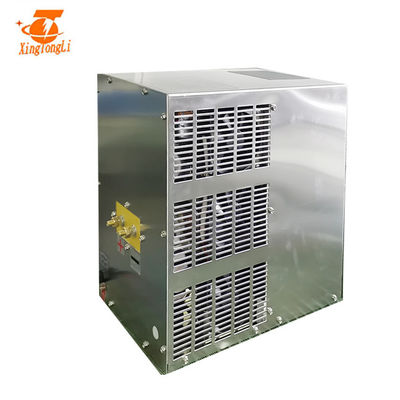

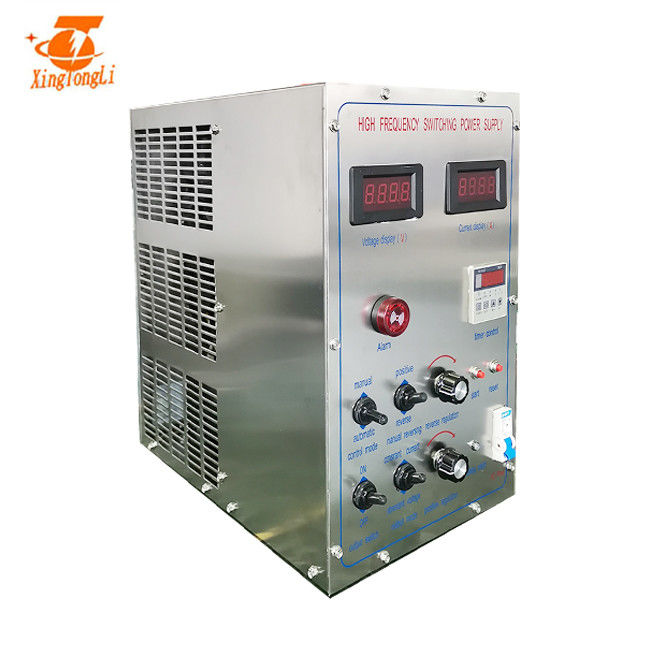

24V 200A Reversible power supply picture

24V 200A Reversible Power Supply For Non Ferrous Metals Electrolysis 0

24V 200A Reversible Power Supply For Non Ferrous Metals Electrolysis 1






THE DIFFERENCE BETWEEN SCR & IGBT SWITCH RECTIFIER



1, efficiency

SCR: 70%

IGBT:90%

2,Transformer

SCR:Power frequency transformer, large volume about 200kg

IGBT:without Power frequency transformer

3,Energy saving efficiency

SCR: bad

IGBT: energy saving about 15%-30%

4, start/stop with load

SCR: can’t

IGBT: can

5,control circuit

SCR:Complex, request synchronous and difficult to integrate

IGBT:use the simple integrated circuit board, and anti-corrosion treatment completely closed.

6,constant current accuracy

SCR:<5%

IGBT:<1%

7,cooling way

SCR: water/oil/air cooling

IGBT:water/air cooling

8,work frequency

SCR:50HZ

IGBT:20KHZ

9,control way

SCR:Phase shift trigger

IGBT: PWM

10,output DC

SCR:half wave

IGBT:High density DC square wave

11,Disturbance to power grid

SCR: large,Not easy to eliminate

IGBT: small,easy to eliminate

12,size and weight

SCR: large size and heavy

IGBT: small and light weight

13,Allowable fluctuation range of input voltage

SCR: ±10%

IGBT:±15%





24V 200A Reversible power supply Installation



24V 200A Reversible Power Supply For Non Ferrous Metals Electrolysis 2





1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier



24V 200A Reversible power supply advantages:



The advantages of pulse and pulse inversion techniques provide almost unlimited possibilities for more and more deposition and coating processes. With these methods, many electrochemical processes can be significantly optimized.

Electroplating electronics has been one of the innovative driving forces behind this demanding technology from the beginning. You can match the current curve and voltage sequence ideally to your application with our power pulse reverse power supply unit. This allows the processing sequence and the coating characteristics of the finished workpiece to be controlled in a way that cannot be achieved with traditional power sources.

Extremely high control accuracy and fast switching time ensure the best pulse, peak accuracy and long-term reproducibility. Take advantage of pulse technology for your company. Electroplating Electronics is your ideal partner.

All power pulse reverse power supply devices are designed to be robust, safe and durable. Benefit from our leading expertise and our comprehensive experience in this special and efficient technology. We can provide you with detailed suggestions according to your specific requirements, and we will find the best pulse power supply for your application.
