IGBT Electroplating Rectifier 200A 24V
  • IGBT Electroplating Rectifier 200A 24V
  • IGBT Electroplating Rectifier 200A 24V
  • IGBT Electroplating Rectifier 200A 24V
IGBT Electroplating Rectifier 200A 24V

IGBT Electroplating Rectifier 200A 24V

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD24-200CVC
Product Details
Product Name:
IGBT Electroplating Rectifier 200A 24V
Input Voltage:
AC 220V
Phase:
1 Phase
Output Voltage:
DC 0~24v Adjustable
Output Current:
DC 0~200A Adjustable
Work Mode:
CC CV
Size:
520*395*165mm
Weight:
25kg
Color:
Gray
High Light:

IGBT Electroplating Rectifier 200A

,

IGBT Electroplating Rectifier 24V

,

AC 220V Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
400$ ~700$
Packaging Details
Single wooden case packing size:520*395*165mm Weight: 25kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300units/month
Product Description

IGBT electroplating rectifier 200A 24V



IGBT electroplating rectifier 200A 24V has a long history in chemical industry. It is an electrolyzer with two electrodes operating in a liquid alkaline electrolyte of potassium hydroxide (KOH) or sodium hydroxide (NaOH). These electrodes are separated by a diaphragm to separate the product gas and transfer the hydroxyl ion (OH -) from one electrode to the other. The comparison results show that the most advanced nickel based water electrolyzers with alkaline electrolytes are competitive and even more efficient than those using platinum group metal based electrocatalysts for membrane water electrolysis of acidic polymer electrolytes.


Electrolysis requires the presence of minerals in the solution. Tap water, well water and groundwater contain a variety of minerals, some of which are alkaline while others are acidic. Water with pH greater than 7.0 is considered alkaline; water below 7.0 is acidic. The requirement is that there must be ions in water to conduct electricity, so as to carry out water electrolysis process.


24V 200A alkaline water electrolysis power supply​ Specification



SPECIFICATIONS FOR GKD24-200CVC
Input AC 220V±10% 1 phase 50/60Hz
Output DC Volt 0~24V Adjustable
Current 0~200A Adjustable
Power 4.8KW
Efficiency >85%
output Frequency 40KHz fixed
output ripple 3%
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)		 -10℃~50℃ Control mode Panel control
Remote control
Net weight 25kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 520*395*165mm Cooling way

air

cooling




24V 200A alkaline water electrolysis power supply feature:



there are many important characteristics of a rectifier which makes them more suitable than a low-voltage generator for electroplating processes:
Rectifier saves energy; it adopts a high-frequency switching power supply transformer and as a result, the efficiency at which it converts current improves.
It is lightweight and also very small; if you have a thyristor rectifier, the size and weight will be 1/5-1/10. This weight and size make it very easy for you to expand, plan, install, maintain and move as the case may be.
Easy modulation; Rectifier output waveform can be modulated. Due to high frequency, the cost of output waveform adjusting processing is low and can be easily changed depending on what the users require. As a result, there will be room to improve the efficiency on site and also improve the quality of processing product.
Stability of output; the system has a high response speed, and as a result, the rectifier can adapt strongly to load changes and electricity network. This characteristic will ensure the accuracy of more than 1%. Also, the switching power supply works very efficiently to enable high precision control which will, in turn, improve the products quality.

24V 200A alkaline water electrolysis power supply Product picture:

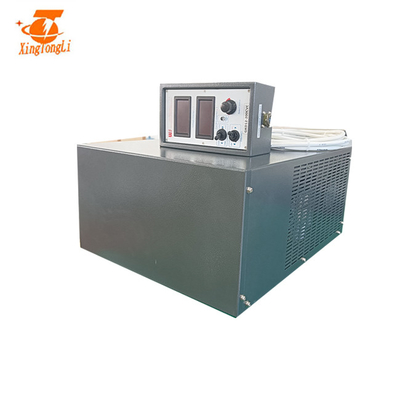

IGBT Electroplating Rectifier 200A 24V 0

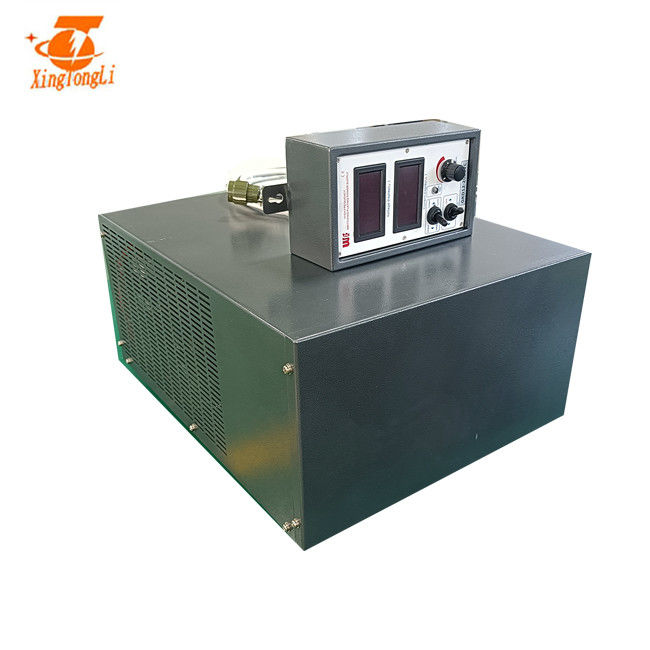

IGBT Electroplating Rectifier 200A 24V 1


24V 200A alkaline water electrolysis power supply Optional Properties

Profibus DP
- 12mbit Profibus DP concordance,opportunuty to connect single or in groups ProfiNet- 100 Mbit
ProfiNet
Concordance,opportunuty to connect single or in groups
Modbus-
Modbus communications over Ethernet or RS485
Ethernet Serial Communication
-Communication over RS 232 or RS485 on Mak Plus or a different protocol 100Mbit wired, 54 Mbit wireless
Analog Reference
- 0-10 V or 4-20 mA DC signal and the Current - Voltage control
PC Control
-Serial and Wireless Communication over RS 232/485 on MRS control software
PLC Control-
Ability to control motor system with two relay contact



Installation



IGBT Electroplating Rectifier 200A 24V 2



1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier





produce process :



From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.



IGBT Electroplating Rectifier 200A 24V 3
