I. Core Parameters

Parameter    Value
Input Voltage    AC 220V ±10% (Single-phase, adaptive to 50/60Hz)
Output Voltage    DC 0-50V adjustable (Positive/negative polarity can be switched)
Output Current    DC 0-100A adjustable
Maximum Power    5KW (50V × 100A)
Reversing Function    Supports manual/auto polarity switching (Period can be programmed)
Efficiency    ≥89% (High-frequency IGBT technology)
Ripple Coefficient    ≤1% (Low-noise output)

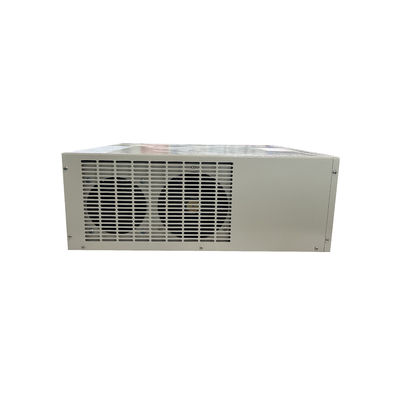

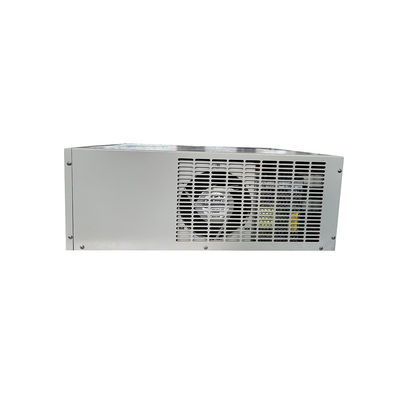

Cooling Method    Intelligent air cooling (Thermostatic speed regulation)

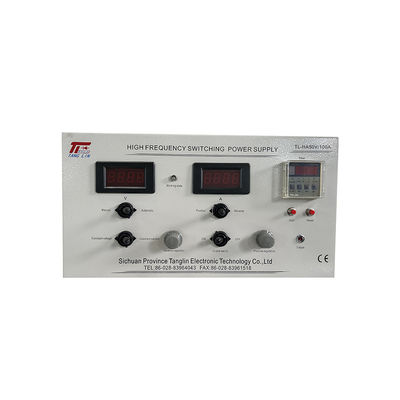

Control Mode    Local control panel + RS485 remote communication
Protection Function    Overvoltage/overcurrent/short circuit/overheat/phase loss protection
Working Environment    -10℃ ~ 45℃, humidity ≤90% RH (No condensation)

II. Product Description
Core Functions

• Bidirectional current output: Supports fast switching of positive/negative polarity (Reversing time < 1 second), suitable for processes such as electrolytic polishing and reverse electroplating that require periodic reversing.
• High-precision control: The voltage/current resolution reaches 0.1V/0.1A, suitable for high-precision scenarios such as precious metal electroplating (e.g., gold plating, silver plating).
  Intelligent heat dissipation: The temperature-controlled fan automatically adjusts the speed according to the load, with a noise level < 60dB, and supports continuous operation for 24 hours.
  Technical Advantages
• High-frequency IGBT topology: The efficiency ≥ 88%, which is 15% more energy-efficient than traditional silicon-controlled rectifiers.
• Multiple protection mechanisms: Automatically reduces the rating in case of overload, cuts off instantly in case of a short circuit, and has an IP20 protection level.
• Flexible control: Supports local knob adjustment or remote RS485 communication (Optional 0-5V/4-20mA analog signal control).

Typical Applications

• Surface treatment: Electrolytic polishing of aluminum materials, electrochemical cleaning of stainless steel.
• Precision electroplating: Micro-hole copper plating on PCBs, gold plating of connectors.
• Laboratory research and development: Verification of process parameters for small-batch electroplating.
