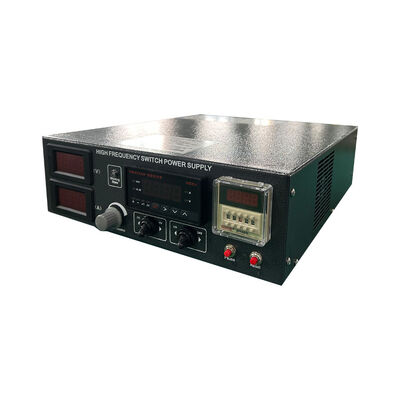

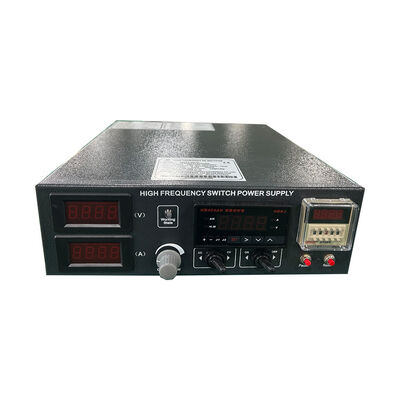

12V 50A Low Ripple DC Power Supply 240V Single Phase with Ampere Hour Meter & Timer Relay

Brand Name:	Xingtongli
Model Number:	GKD12-50CVC
MOQ:	1pcs
Price:	470-650$/unit
Packaging Details:	strong plywood standard exporting package
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO9001

Supply Ability:

200 Set/Sets per Month

Highlight:

12V 50A DC power supply with meter

low ripple power supply 240V single phase

electropolishing power supply with timer relay

Product Description

12V 50A Low Ripple DC Power Supply 240V Single Phase with Ampere Hour Meter & Timer Relay

This 12V 50A low ripple DC power supply is designed for precision electroplating and laboratory applications. Featuring 240V single-phase input, built-in ampere-hour meter, and timer relay, the unit provides stable DC output with accurate process control and reliable performance. Suitable for gold plating, silver plating, PCB plating, electrolysis, and other low-current surface treatment processes.

Technical Specifications

Input Power: single-phase 240V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0-12V continuously adjustable
- Current: DC 0-50A continuously adjustable
- Power: Max 600W (12V *50)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
