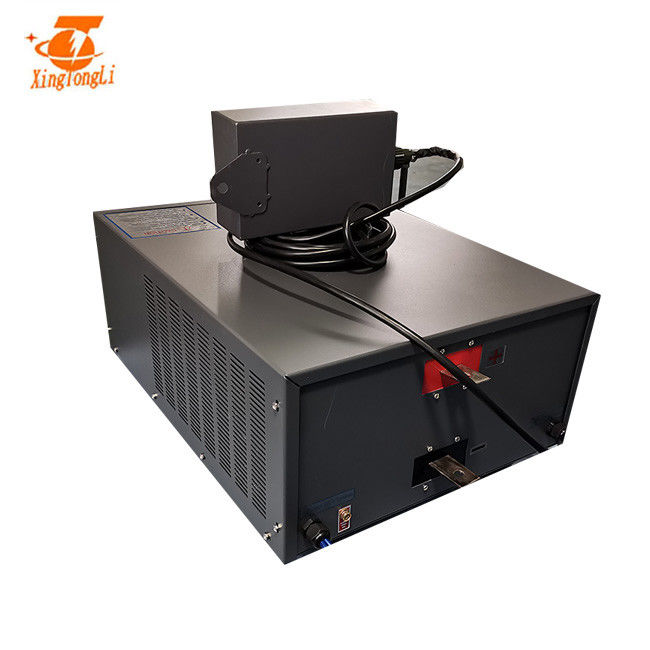

HF Electroplating Power Supply

Basic Information
Place of Origin: China
Brand Name: xingtongli
Certification: ISO CE RoHS
Model Number: GKD20-200CVC
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Single wooden case packing size: 750*560*900mm Weight:114kg
Delivery Time: 7~15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 units /month
Product Name: 20v 200a HF IGBT Copper Plating Power Supply With 220v 3phase Input Input Voltage: 220V
Phase: 1 Phase Output Voltage: 0~20v Adjustable
Output Current: DC 0~200A Adjustable Cooling: Air Cooling
Size: 605*415*240mm Weight: 35kg
Control: Remote Control Box Control With 6 Meters Control Wire
High Light:

IGBT copper plating power supply

,

20v 200a Electroplating Power Supply

20v 200a HF IGBT copper plating power supply with 220v 3 phase input





Power supply rectification technology:

Plating power supply frequency is a direct current equipment of changing industry frequency alternating voltage into different voltage, frequency and waveform. In the thyristor rectifier main application of “rectification” technology, while in the high frequency switching mode power supply applying both “rectification” technology and “inverter” technology.





Specification

SPECIFICATIONS FOR GKD20-200CVC
Input AC 220V±10% 3phase 50/60Hz
Output DC Volt 0~20V Adjustable
Current 0~200A Adjustable
Power 4KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 35kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 605*415*240mm Cooling way Air cooling

Characteristics of aluminum anodized dc rectifier:

It has the advantages of small size, light weight, high efficiency and high control precision.

The pulse width modulation power supply introduces the international advanced technology, adopts the international brand IGBT power module;

Perfect protection function, with stable voltage and stable current working mode, and with filtering, overvoltage, overheat, short circuit, missing phase protection function and soft start function.

The power supply adopts special design control system, and the internal structure is acid and alkali resistant, which greatly improves the service life of the product.



A. Digital timing system;

B. Ampere hour meter;

C. Standard interface;

D. Control signal interface.

HF Electroplating Power Supply 0



HF Electroplating Power Supply 1

HF Electroplating Power Supply 2



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
HF Electroplating Power Supply 3





Other advantages


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.
