Water Electrolysis Igbt Power Supply

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD48-300CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size:750*560*780mm Weight:114kg
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 150units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Water Electrolysis IGBT Power Supply 12v 5000a With 4~20mA Analog Interface Input Voltage AC 415V
Phase 3 Phase Output Voltage DC 0~12v Adjustable
Output Current DC 0~5000A Adjustable Work Mode CC CV
Size 740mm Weight 280KG
Color Grey
High Light

3000a igbt power supply

,

8v igbt power supply

,

Water Electrolysis Igbt Power Supply

Leave a Message
Product Description

water electrolysis IGBT power supply 12v 5000a with 4~20mA analog interface

Electrolysis of water is the decomposition of water into oxygen and hydrogen gas due to the passage of an electric current.

This technique can be used to make hydrogen gas, a main component of hydrogen fuel, and breathable oxygen gas, or can mix the two into oxyhydrogen, which is also usable as fuel, though more volatile and dangerous


Specification

SPECIFICATIONS FOR GKD12-5000CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~5000A Adjustable
Power 20KW
Efficiency >85%
output Frequency 40KHz fixed
reverse reverse time 0~999hours optional
reverse way mannual/automatic
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 280kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 1020*1000*1270m Cooling way water cooling

 Features
Using timing control function, the setting is simple and convenient, and the working time of positive and negative current polarity can be arbitrarily set according to the plating process requirements.
It has three working states of automatic cycle commutation, positive and negative, and reverse, and can automatically change the polarity of the output current.

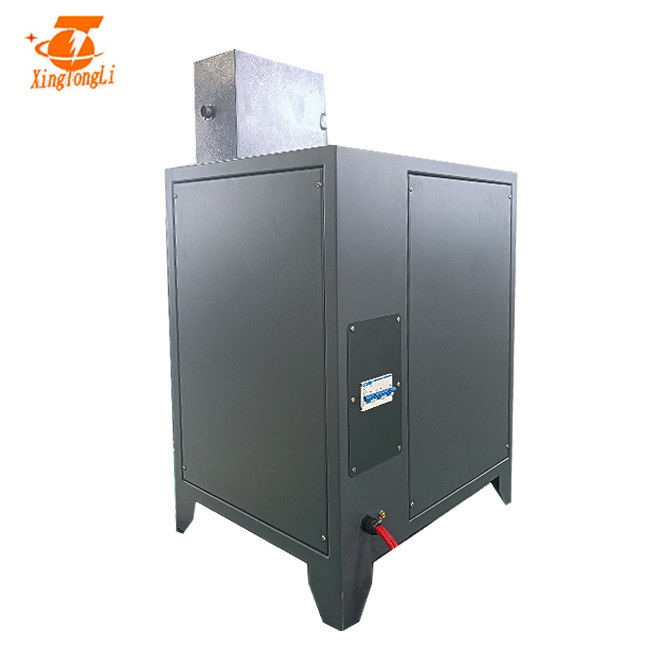

Water Electrolysis Igbt Power Supply 0

Water Electrolysis Igbt Power Supply 1


How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
Water Electrolysis Igbt Power Supply 2
The superiority of periodic commutation pulse plating
1 Reverse pulse current improves the thickness distribution of the coating, the thickness of the coating is uniform, and the leveling is good.
2 The anode dissolution of the reverse pulse makes the concentration of metal ions on the cathode surface rise quickly, which is conducive to the use of a high pulse current density in the subsequent cathode cycle, and the high pulse current density makes the formation speed of the crystal nucleus faster than the growth rate of the crystal, so The coating is dense and bright, with low porosity.
3. The reverse pulse anode stripping greatly reduces the adhesion of organic impurities (including brightener) in the coating, so the coating has high purity and strong resistance to discoloration, which is particularly prominent in silver cyanide plating.
4. The reverse pulse current oxidizes the hydrogen contained in the coating, which can eliminate hydrogen embrittlement (such as the reverse pulse can remove the co-deposited hydrogen during the electrodeposition of palladium) or reduce the internal stress.
5. The periodic reverse pulse current keeps the surface of the plated part in an active state all the time, so that a plating layer with good bonding force can be obtained.
6. Reverse pulse is helpful to reduce the actual thickness of the diffusion layer and improve the cathode current efficiency. Therefore, proper pulse parameters will further accelerate the deposition rate of the coating.
7 In the plating system that does not allow or a small amount of additives, double pulse plating can obtain a fine, smooth, and smooth coating.
As a result, the coating's performance indicators such as temperature resistance, wear resistance, welding, toughness, corrosion resistance, conductivity, resistance to discoloration, and smoothness have increased exponentially, and it can greatly save rare and precious metals (about 20%-50%) and save additives (such as Bright silver cyanide plating is about 50%-80%)
