48v Dc Power Supply For Electrolysis

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD48-100CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size:750*560*780mm Weight:114kg
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 150units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DC Power Source For Tank Electrolysis With Air Cooling Remote Control Input Voltage AC 220V
Phase 3 Phase Output Voltage DC 0~48v Adjustable
Output Current DC 0~100A Adjustable Work Mode CC CV
Size 520*395*165mm Weight 18KG
Color Grey
High Light

100A dc power supply for electrolysis

,

4.8KW dc power supply for electrolysis

,

48v Dc Power Supply

Leave a Message
Product Description

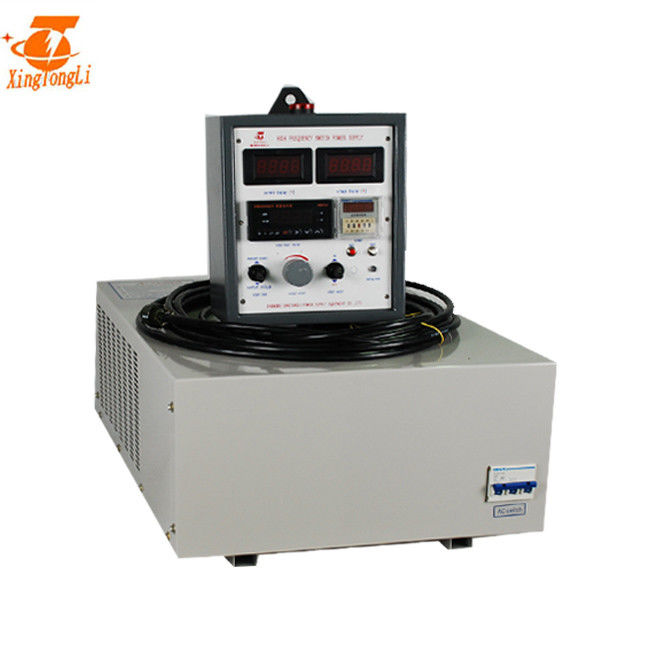

DC Power source for tank electrolysis with air cooling remote control



Description of high frequency electrolytic power supply:

1. The structure of single main cabinet or double main cabinet plus control cabinet can be configured according to the user's requirements.

2. When the DC output current is ≥ 10kA, the whole circuit in parallel with the reverse rectifier circuit is adopted, which greatly reduces the eddy current loss and improves the efficiency of the electrolytic power supply.

3. The control mode can be divided into open-loop (manual) and closed-loop (automatic) according to the production process requirements, and can be converted to each other. The output phase number of DC current can be divided into 6, 1224, 36 and 48 phase pulse rectifiers according to the harmonic current standard, eliminating the pollution of power rectifiers 3, 5 and 7 on the power grid.

4. This series of electrolytic power supply has over-current, over-voltage, short circuit, branch, under phase, high water temperature, water pressure, oil temperature and high / low, high oil pressure protection, fully integrated control circuit.

5. The main control board adopts high anti-interference and high-power digital circuit trigger system, which has strong anti-interference ability. It has the advantages of high control accuracy, good stability and reliable operation.

6. The cabinet adopts cutting magnetic link to reduce eddy current loss. The cabinet adopts overall plastic spraying.

7. Control mode: integrated analog control and computer control.


Specification

SPECIFICATIONS FOR GKD48-100CVC
Input AC 380V±10% 1phase 50/60Hz
Output DC Volt 0~48V Adjustable
Current 0~100A Adjustable
Power 4.8KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 18kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 520*395*165mm Cooling way water cooling

48v Dc Power Supply For Electrolysis 0

48v Dc Power Supply For Electrolysis 1




How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
48v Dc Power Supply For Electrolysis 2

1. Principle of electrolysis

① Concept: The process of causing current to pass through the electrolyte solution to cause redox reactions at the cathode and anode is called electrolysis;

The device that can be converted into chemical energy is called an electrolytic cell.

②Formation conditions of electrolytic cell: the electrode connected to the positive electrode of the power supply is the anode, and the electrode connected to the negative electrode of the power supply is the negative electrode

Poles; both poles are immersed in the same electrolyte solution at the same time; forming a closed circuit, so that it can form a working electrolytic cell.

③ Bipolar reaction: the anode loses electron oxidation reaction, and the cathode gets electron reduction reaction; the electron flow method

Starting from the negative electrode of the electrode, through the cathode of the electrolytic cell, and then from the anode of the electrolytic cell back to the positive electrode of the power supply.

2. Application of electrolysis principle

(1) Electroplating: The process of plating a thin layer of other metals or alloys on the surface of certain metals using the principle of electrolysis. When plating,

The coated metal serves as the anode, the plated object serves as the cathode, and the electrolyte solution containing the coated metal ions serves as the plating solution. Direct current for electroplating

For power supply.

(2) Electric smelting: electrolytic molten electrolyte can be refined into active metals. Such as potassium, sodium, calcium, magnesium, aluminum and other metals. When the electricity

When flowing through molten metal chloride or oxide, the negative electrode of the current is the strongest "reducing agent", and the metal cation will be in the negative

Extremely reduced reaction and precipitation.
