Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase

Brand Name: xingtongli
Model Number: GKD24-500CVC
MOQ: 1 unit
Price: Negotiable
Packaging Details: Single wooden case packing size: 690*550*520mm Weight:55kg
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO CE
Input Voltage:
220v /380v/415v/450v
Phase:
3 Phase
Type:
AC To DC
Control:
Remote Control
Cooling:
Forced Air Cooling
Size:
665*490*270mm
Weight:
40kg
Time Control:
Ampere Hour Meter
Supply Ability:
200 units /month
Highlight:

plating power supply

,

dc rectifier for electroplating

,

Electroplating Dc Power Supply Rectifier

Product Description

230v ac 24v dc electroplating rectifier with ampere hour meter





230v ac 24v dc electroplating rectifier with ampere hour meter is a new type electro plating machine plating rectifier – high frequency switching power supplies. It combines advantages of silicon rectifier waveform smoothness and silicon controlled rectifiers voltage easy adjustment, while has highest current efficiency (up to 90%), the most smallest volume, and needless to say, it is the most promising plating rectifier. Manufacturing technology has solved the power problem, thousands of amperes power switching plating rectifiers have entered a practical stage of application.



GENRAL SEPCIFICATION 24v dc electroplating rectifier with ampere hour meter

AC Input voltage 220V
frequency 50/60hz
phase 3 phase
output current 0~500a adjustable
voltage 0~24v adjustable
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC

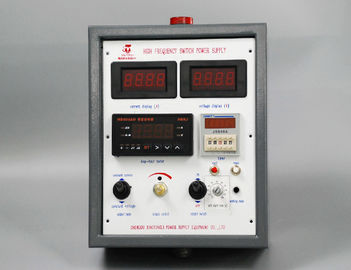

Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading

Full capacity operation, more than 1,000 meters above sea level, reduced load operation

feature:230v ac 24v dc electroplating rectifier with ampere hour meter

Cabinet:

230v ac 24v dc electroplating rectifier cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

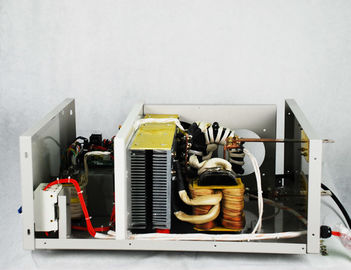

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

igbt anodizing rectifier amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

plating rectifier all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

230v ac 24v dc electroplating rectifier IGBT capacity expanded 3 times,make the power supply more reliable

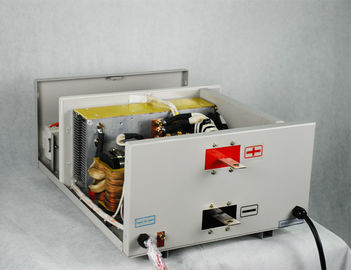

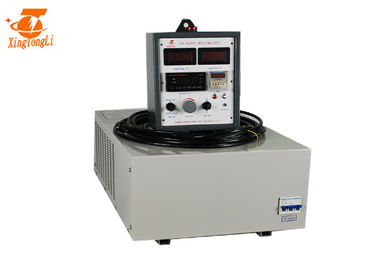

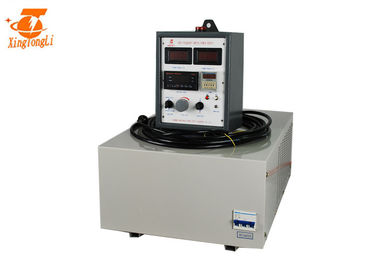

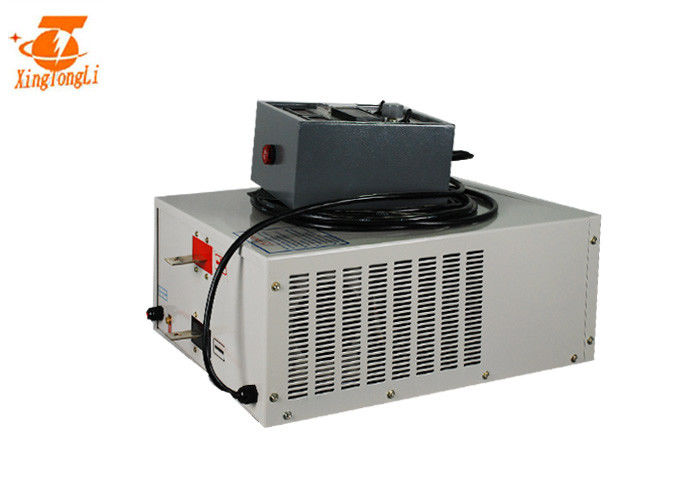

Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase 0

Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase 1

Forced Air Cooling Dc Power Supply Rectifier For Electroplating Three Phase 2
