IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency
  • IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency

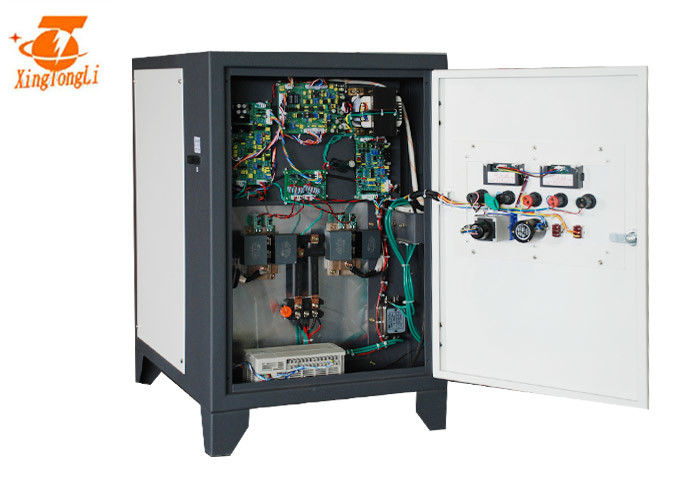

IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD110-150CVC
Product Details
Cabinet Color:
Gray
Input Voltage:
415V
Phase:
3 Phase
Product Name:
Sewage Treatment System Rectifier
Type:
IGBT Type
Size:
715*485*860mm
Weight:
80kg
Control:
PLC Control
Cooling Way:
Forced Air Cooling
High Light:

low ripple switching power supply

,

electrolysis machine power supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 750*560*780mm Weight:114kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description

high frequency igbt Electrocoagulation waste water treatment power supply with DC output 110v 150A



Electric flocculation waste water treatment make using of aluminum or iron anodic dissolution, make water pollutants particles gathered into groups then sedimentation or air separation.
Electrocoagulation waste water treatment has the advantages of high efficiency, small amount of mud and easy solid-liquid separation, no need of external chemical, less secondary pollution, equipment operation simple control and maintenance, easy automatic control and final total dissolved (TDS). Now electrocoagulation waste water treatment become an effective way to deal with inorganic and organic wastewater, such as heavy metals, fluoride ions and dyes.



GENRAL SEPCIFICATION Electrocoagulation waste water treatment power supply with DC output 110v 150A



AC Input voltage 415V
frequency 50/60hz
phase 3 phase
output current 0~150a adjustable
voltage 0~110v adjustable
frequency 40khz
effiencicy ≥89%
voltage stability ≤1%
current stability ≤1%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
control part cooling system air cooling /water cooling/mixed water & air cooling
control method local panel control/remote control box/ PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
use environment Operating temperature -20-50℃
Ambient temperature 30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation

feature:Electrocoagulation waste water treatment power supply

Cabinet:

Electrocoagulation waste water treatment power supply cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

igbt anodizing rectifier amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

Electrocoagulation waste water treatment power supply all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

Electrocoagulation waste water treatment power supply IGBT capacity expanded 3 times,make the power supply more reliable





Electric flocculation waste water treatment power supply features:



1, Our water treatment power supply can be a single main cabinet or dual main cabinet plus control cabinet structure according to user requirements.

2, When DC output current ≥10KA, with full circuit electrically coupled in parallel with reverse-phase rectifier circuit, significantly reducing the eddy current losses and improve the efficiency of the equipment.

3, Control mode can be divided into open loop (manual) and closed loop (automatic) two kinds according to production process requirements, and can be changed each other, with the number of DC current output according to the national standard harmonic currents can be divided into 6, 12, 24, 36 and 48 phase pulse rectifier, eliminates power 3, 5, 7 rate rectifier harmonic pollution on the grid.

4, Water treatment power supply device with over-current, over voltage, short circuit, under branch, phase failure, high water temperature, low water pressure, oil temperature high/low, higher oil pressure protection, fully integrated control loop.

5, Main board adopts high-power digital circuit trigger anti-jamming system, has a strong anti-interference ability. And having high precision control, good stability, reliable operation advantages.

6, Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting.

7, Control method can be integrated analog control and computer control two type.

 IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency 0IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency 1

IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency 2

IGBT Electrocoagulation Waste Water Treatment Power Supply High Frequency 3
