PCB IGBT plating DC rectifier 12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a
  • PCB IGBT plating DC  rectifier  12v 100a

PCB IGBT plating DC rectifier 12v 100a

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-100CVC
Product Details
Input Voltage:
Single Phase
Local Panel Control
Forced Air Cooling
Product Name:
PCB Plate Plating Rectifier
CC CV +-1%
High Light:

pcb plating rectifier


copper plating rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Single wooden case packing size: 440*380*190mm Weight:19kg
Delivery Time
3~5 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300 units/month
Product Description

PCB IGBT plating DC rectifier 12v 100a




Input AC 220V±10% 1phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~200A Adjustable
Power 2.4KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 10kg Working mode Constant Voltage(CV)
Constant Current(CC)


Cooling way air cooling


PCB IGBT plating DC  rectifier  12v 100a  Picture:

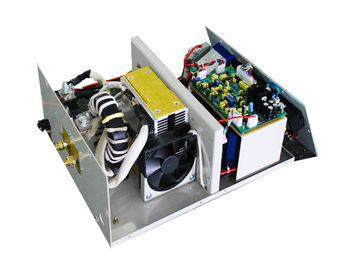

PCB IGBT plating DC  rectifier  12v 100a 0

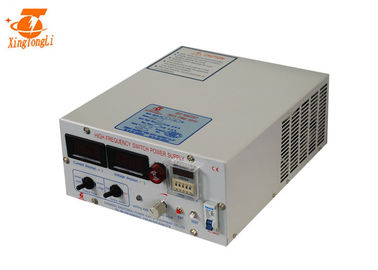

PCB IGBT plating DC  rectifier  12v 100a 1


How to choose PCB plate plating rectifier ?


To select PCB plate plating rectifier has three requirements:
1, Meet the specifications required by plating process, including dc power supply power, waveform index, adjustable current and voltage range, etc.;
2, PCB plate plating power supply itself reliability power supply, which mainly refers to structure reasonable, security and line features, cooling methods;
3, DC power supply cost performance.

Determine what kind of PCB plate plating rectifier suitable for you:

Determining plating type and and what kind of dc power supply the plating tanks shall use is the implementation and the first important work in electroplating production. There are 2 methods to determine suitable dc power supply in the actual plating production:
One: according to plating liquid solution to determine volume current density;
Two: calculated according to the plating area to get plating current density per unit.

The so-called volume current density, it is based per liter of plating solution allowed to pass maximum current to adjust entire plating tank current intensity, to determine the maximum power supply output and the conventional output.

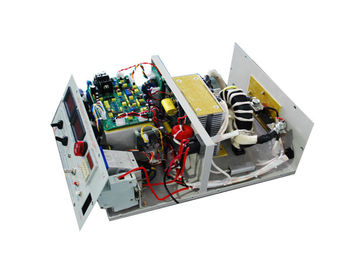

PCB IGBT plating DC  rectifier  12v 100a 2


PCB IGBT plating DC  rectifier  12v 100a  advantages


adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability


Core & Schottky diode:


core capacity expanded 1.5 times


schottky diode expands 4 times


Board :


all control boards did anticorrosion treatment with imported three defense lacquer




IGBT capacity expanded 3 times,make the power supply more reliable


How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

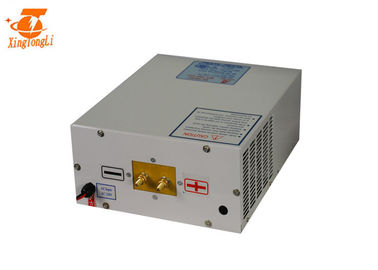

PCB IGBT plating DC  rectifier  12v 100a 3

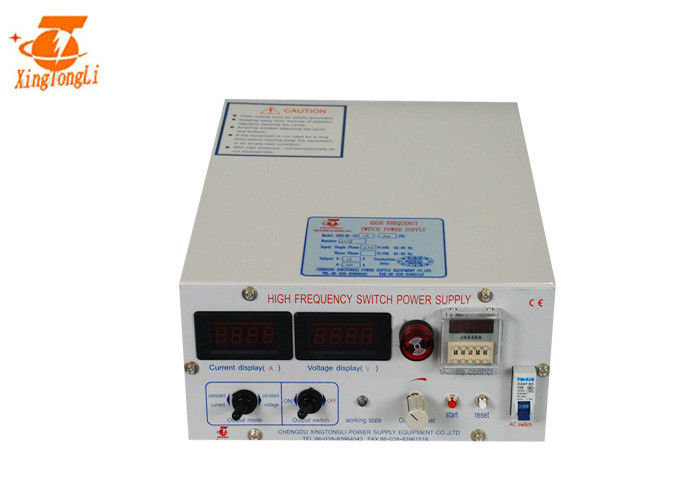

PCB IGBT plating DC  rectifier  12v 100a 4


Our service


Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered



1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
