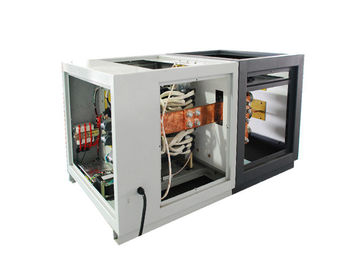

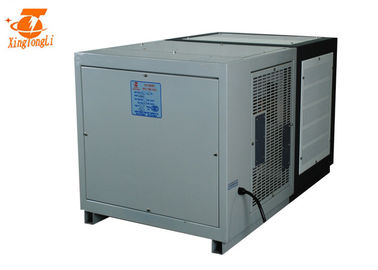

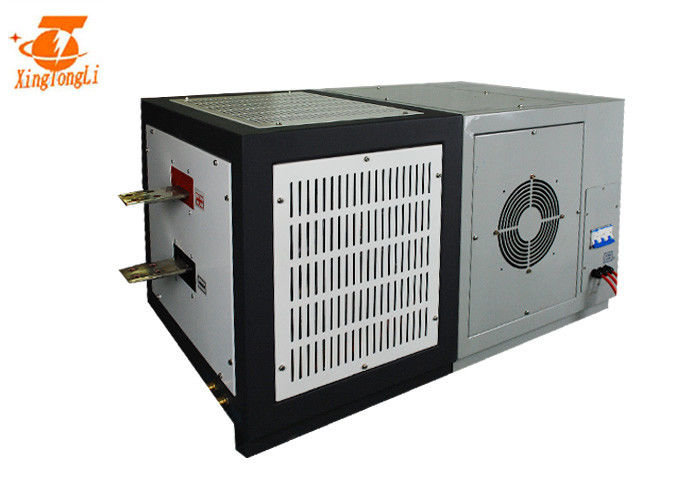

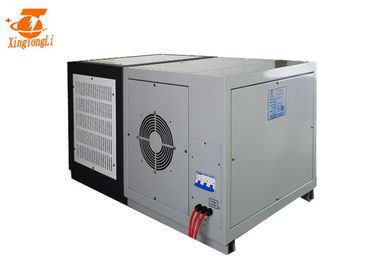

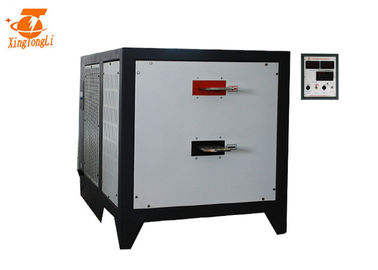

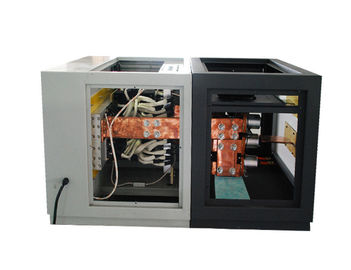

12v 3000a High frequency water cooling electrolytic rectifier with polarity reverse
High frequency electrolytic power supply description:
1, Can configure a single main cabinet or double main cabinet plus control cabinet structure according to user requirements.
2, When DC output current≥10 KA, adopt full circuit electrically coupled in parallel with the reverse-phase rectifier circuits, drastically reducing the eddy current losses and improve the efficiency of electrolytic power supply.
3, Control mode can be divided into: open loop (manual) and closed loop (automatic) two kinds according to production process requirements, and mutual conversion, DC current output phase number according to harmonic currents standard can be divided into 6,12 24,36 and 48 phase pulse rectifier, eliminating power rectifier 3,5,7 current harmonic pollution on the grid.
4. This series electrolytic power supply with over-current, over voltage, short circuit, under branches, under phase, high water temperature, water pressure, oil temperature and high/low, higher oil pressure protection, fully integrated control loop.
5, Major control board using high anti-interference high-power digital circuit triggers system, has a strong anti-jamming capability. And having advantages of high accuracy control, good stability, reliable operation.
6, Cabinet adopts cutting magnetic link, reducing the eddy current loss, the cabinet with a whole spray plastics.
7, Control methods: integrated analog control and computer control two categories.
