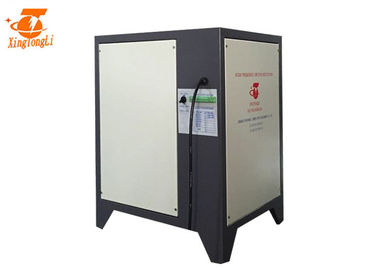

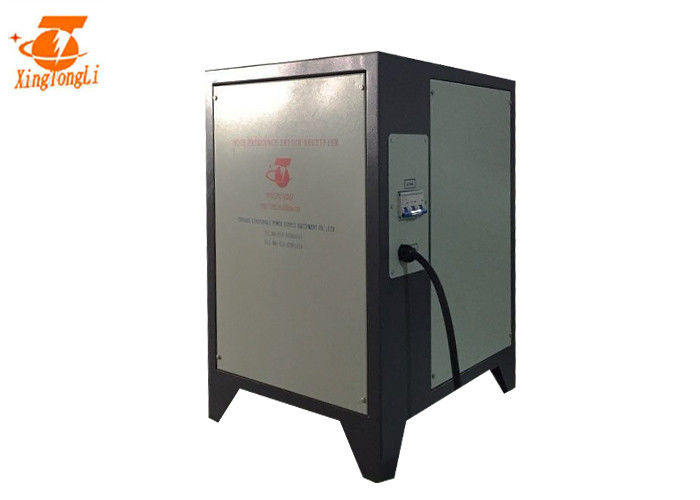

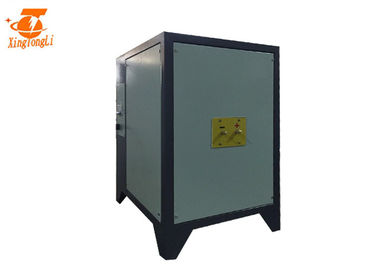

120v 200a Hard Anodizing Oxidation Pulse Rectifier With 4~20am Interface

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD120-200CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size: 750*560*900mm Weight:114kg
Delivery Time 7~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200 units /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 120v 200a Hard Anodizing Pulse Rectifier Input Voltage 380V
Phase 3 Phase Output Voltage 0~120v Adjustable
Output Current DC 0~200A Adjustable Cooling Air Cooling
Size 715*485*860mm Weight 85kg
Control Analog Interface 4~20mA
High Light

anodizing rectifier


dc power supply for anodizing

Leave a Message
Product Description

120v 200a Hard anodizing pulse rectifier


Pulse hard oxidation rectifier main technical characteristics:


1-100S  adjustable soft-start time, and as the pulse soft-start, especially suitable for hard oxidation process;

Variety of work options: pure pulse, pulse overlay, DC, etc;

In operation can be displayed at any pulse frequency, duty cycle, pulse-based high & peak all operating parameters, so you have complete control of which exactly state of the workpiece;
Under operation condition, the parameters can be freely modified, adjusted, ready storage.


120v 200a Hard anodizing pulse rectifier specification and parameter:

Plating rectifier Input voltage

Single phase 110V/220V AC

Output voltage

0~120v adjustable

Output current

0-200A adjustable

Voltage stability


Current stability


Ripple factor




Stabilization mode

Current stabilization/Voltage stabilization (Switchable easily)

Adjustment range

Voltage/Current from 0-100% continuously adjustable within rated range

Cooling system

Air cooling

Control method

PLC analog 4~20mA

Display contents

Voltage meter/Current meter/Working/Over temp/Error, etc..

Protection method

Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..

Operating temperature


Ambient temperature


Ambient humidity


Working loading

Full capacity operation, more than 1,000 meters above sea level, reduced load operation

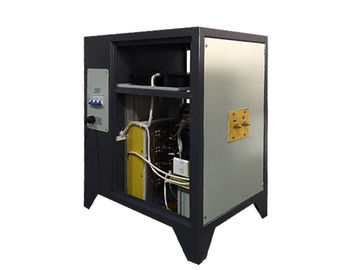

120v 200a Hard Anodizing Oxidation Pulse Rectifier With 4~20am Interface 0

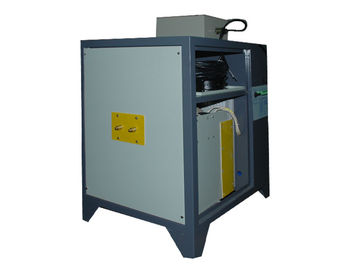

120v 200a Hard Anodizing Oxidation Pulse Rectifier With 4~20am Interface 1

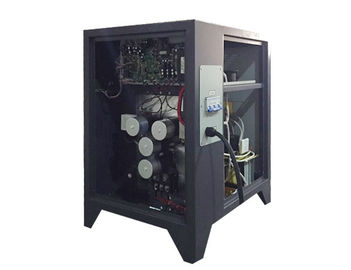

120v 200a Hard Anodizing Oxidation Pulse Rectifier With 4~20am Interface 2


After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered




1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
