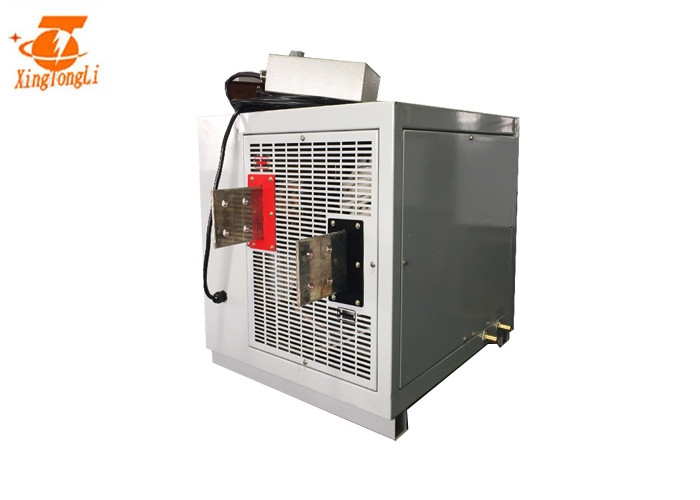

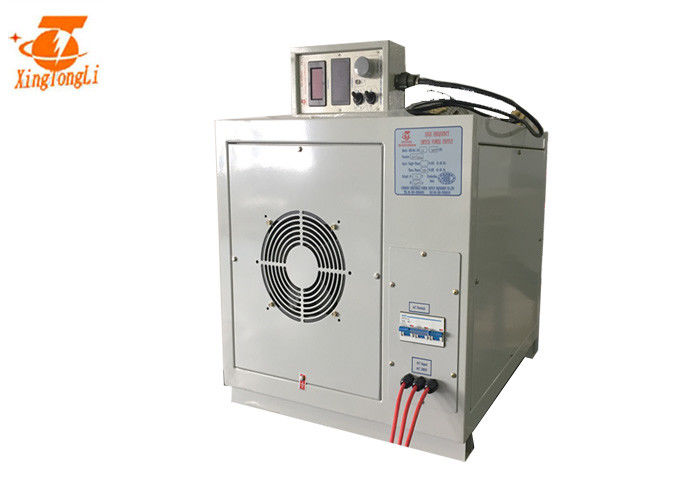

380v High Frequency Zinc Plating Power Supply Water Cooled With Remote Control
Place of Origin | China |
---|---|
Brand Name | xingtongli |
Certification | ISO CE |
Model Number | GKD18-3000CVC |
Minimum Order Quantity | 1 unit |
Price | Negotiable |
Packaging Details | Single wooden case packing size:780*610*580mm Weight:100kg |
Delivery Time | 10~18 work days |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 150 units/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Black | Input Voltage | 380v |
---|---|---|---|
Phase | 3 Phase | Output Voltage | DC 0~18V Adjustable |
Output Current | DC 0~3000A Adjustable | Size | 740*505*425mm |
Weight | 80kg | Control | Remote Control With 6 Meter Control Wire |
High Light | plating power supply,electroplating rectifier,380v Zinc Plating Power Supply |
380v high frequency water cooled zinc plating igbt power supply 18v 3000a with remote control
high frequency water cooled zinc plating igbt power supply 18v 3000a features:
- Our high frequency water cooled zinc plating igbt power supply 18v 3000a uses famous brand components and international advanced full bridge inverter technology of precision machining, so that the performance of the whole AC to DC rectifier is stable,quality is more reliable.
- Whole high frequency water cooled zinc plating igbt power supply 18v 3000ar has the function of over voltage, over current, over temperature, short circuit, equal and automatic protection alarm function and soft start function. And can be equipped with time control and computer interface.
- DC output waveform is high frequency square waveform, ripple factor less than 1%, can increase plating, refuse passivation, enhance the gloss of the plating coating surface and the core of the dark corner of plating coating. And can reduce the loss of raw materials, to achieve a variety of special requirements of electroplating industry.
high frequency water cooled zinc plating igbt power supply 18v 3000a cooling method:
- High frequency switching power supply AC to DC rectifier adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.
high frequency water cooled zinc plating igbt power supply 18v 3000a advantage of small size and energy saving:
- Small size, light weight, the whole high frequency water cooled zinc plating igbt power supply 18v 3000a machine use a full range of anti-corrosion technology, enhanced the product’s anti corrosion ability, extend the service life.
- High efficiency, energy saving, work efficiency can reach more than 90%, any voltage current ratio is always linear matching. Eliminating the need for traditional rectifiers regulator and the main transformer loss, energy saving in more than 35%, greatly reducing the electro plating cost, which is the most sensible choice for surface treatment plating machine industry
-
high frequency water cooled zinc plating igbt power supply 18v 3000a specification and parameter:
Plating rectifier Input voltage Single phase 110V/220V AC Output voltage 0~18v adjustable Output current 0-3000A adjustable Voltage stability ≤1% Current stability ≤1% Ripple factor 1%-2% Efficiency ≥90% Stabilization mode Current stabilization/Voltage stabilization (Switchable easily) Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range Cooling system Air cooling Control method local panel control Display contents Voltage meter/Current meter/Working/Over temp/Error, etc.. Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc.. Operating temperature -20-50℃ Ambient temperature -30-65℃ Ambient humidity ≤90%
Cabinet: high frequency water cooled zinc plating igbt power supply 18v 3000a cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
Main transfadopts high frequency water cooled zinc plating igbt power supply 18v 3000a amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
Board : high frequency water cooled zinc plating igbt power supply 18v 3000a all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: 3high frequency water cooled zinc plating igbt power supply 18v 3000a IGBT capacity expanded 3 times,make the power supply more reliable |
