Electrocoagulation Power Supply
>
|
| Place of Origin | China |
| Brand Name | xingtongli |
| Certification | ISO CE |
| Model Number | GKD300-100CVC |

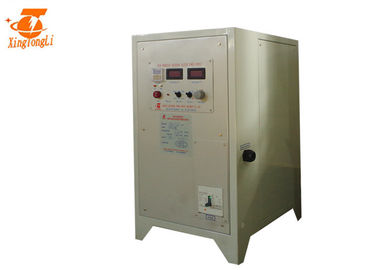

300v 100a high voltage switch mode DC electrocoagulation rectifer
intruduction
At present, the method of effectively suppressing plate passivation is to replace the DC current with pulse current power supply and reduce the electrolytic polarization. The intermittent period of pulse current can cause the electrolyzed metal ions to react fully with OH- in the water to form a flocculant, and with the water out of the electrode area, thereby reducing the metal ion oxidation film probability. Substrate commutation can periodically change the direction of polarization, damage the fixed polarization region and effectively inhibit the passivation.
300v 100a high voltage switch mode DC electrocoagulation rectifer:
Electrocoagulation method (waste) water treatment equipment is water treatment equipment. It uses principle of electrolysis and coagulation, to make multiple physical and chemical effects towards pollution (waste) water pollutants in the redox, neutralization, condensation, air separation and other, which rapid completion of sewage (waste) water treatment. With advantages of easy maintenance, high degree of automation, automatic plate cleaning, processing efficiency and stability, small workplace, high processing speed and so on.
300v 100a high voltage switch mode DC electrocoagulation rectifer specification and parameter: |
|
|
Input voltage |
three phase 380V AC |
| Output voltage | 0~300v adjustable |
| Output current | 0-100A adjustable |
| Voltage stability | ≤1% |
| Current stability | ≤1% |
| Ripple factor | 1%-2% |
| Efficiency | ≥90% |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) |
| Adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range |
| Cooling system | Air cooling/Water cooling |
| Control method | Manual/PLC |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. |
| Protection method | Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc.. |
| Operating temperature | -20-50℃ |
| Ambient temperature | -30-65℃ |
| Ambient humidity | ≤90% |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
|

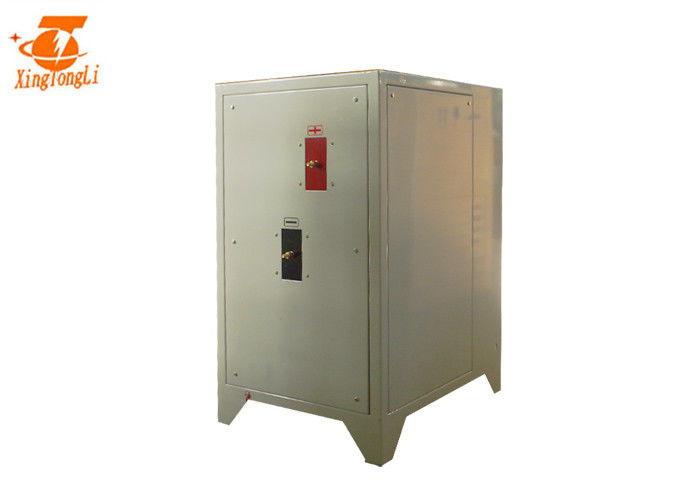

Cabinet: 300v 100a high voltage switch mode DC electrocoagulation rectifer adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: 300v 100a high voltage switch mode DC electrocoagulation rectifer with reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: 300v 100a high voltage switch mode DC electrocoagulation rectifer adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: IGBT capacity expanded 3 times,make the power supply more reliable |
