3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency
  • 3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency
  • 3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency

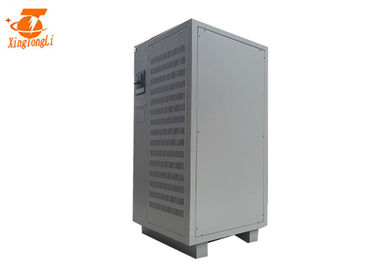

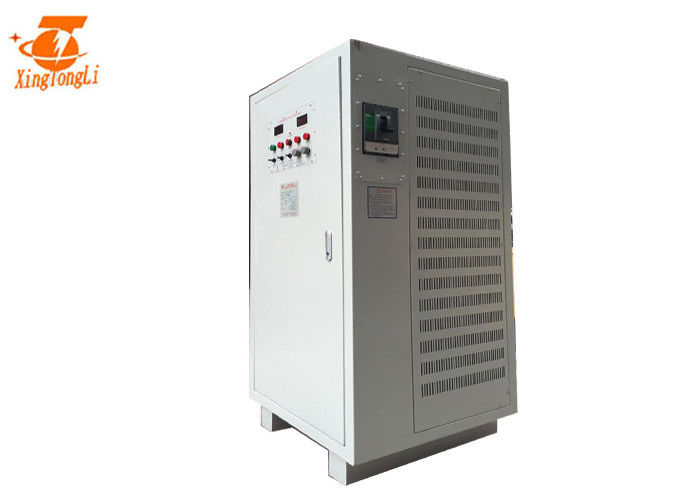

3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD24-5000CVC
Product Details
Color:
Black
Input Voltage:
380v
Phase:
3 Phase
Output Voltage:
DC 0~24V Adjustable
Output Current:
DC 0~5000A Adjustable
Size:
1010*900*1750mm
Weight:
380kg
Control:
Local Panel Control
Highlight:

plating power supply

,

electroplating rectifier

,

Hard Chrome Plating Rectifier 24V

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size:1010*900*1750mm Weight:450kg
Delivery Time
25~30work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 units/month
Product Description

24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier



Features:

  • Our 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier uses famous brand components and international advanced full bridge inverter technology of precision machining, so that the performance of the whole 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier is stable,quality is more reliable.
  • Whole 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier  has the function of over voltage, over current, over temperature, short circuit, equal and automatic protection alarm function and soft start function. And can be equipped with time control and computer interface.
  • DC output waveform is high frequency square waveform, ripple factor less than 1%, can increase plating, refuse passivation, enhance the gloss of the plating coating surface and the core of the dark corner of plating coating. And can reduce the loss of raw materials, to achieve a variety of special requirements of electroplating industry.

Method:

  • 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.

24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier advantage of small size and energy saving:

  • Small size, light weight, the whole 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier use a full range of anti-corrosion technology, enhanced the product’s anti corrosion ability, extend the service life.
  • High efficiency, energy saving, work efficiency can reach more than 90%, any voltage current ratio is always linear matching. Eliminating the need for traditional rectifiers regulator and the main transformer loss, energy saving in more than 35%, greatly reducing the electro plating cost, which is the most sensible choice for surface treatment plating machine industry
  • 24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier specification and parameter:

    Plating rectifier Input voltage three phase 415V
    Output voltage 0~24v adjustable
    Output current 0-5000A adjustable
    Voltage stability ≤1%
    Current stability ≤1%
    Ripple factor 1%-2%
    Efficiency ≥90%
    Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
    Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
    Cooling system Air cooling
    Control method local panel control
    Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
    Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
    Operating temperature -20-50℃
    Ambient temperature -30-65℃
    Ambient humidity ≤90%

3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency 0

3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency 1







3 Phase Igbt Hard Chrome Plating Rectifier 24V 5000A Air Cooling High Efficiency 2

Cabinet:

24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

d24v 5000a air cooling 415V 3 phase igbt hard chrome plating rectifier IGBT capacity expanded 3 times,make the power supply more reliable
