High Frequency Reversing Polarity 15V 5000 Amp

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number GKD(M)(H)15-5000CVC
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case 1300*800*1400mm
Delivery Time 15~20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability 100 SET/month
Product Details
Application Hard Chrome Plating Rectifier Efficiency >85%
Control Way Remote Control Cooling Way Water Cooling
Color Grey And Blue Type AC To DC
Size 1300*800*1400mm
High Light

electrolytic rectifier


low ripple switching power supply

Leave a Message
Product Description

High Frequency Reversing Polarity 15V 5000 Amp



Input AC 110V±10% 1phase 50/60Hz
Output DC Volt(+/-) 0~15V Adjustable
Current(+/-) 0~5000A Adjustable
Power 75KW
Efficiency >85%
Reverse time 0~99 hour automatical
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 417kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) / Cooling way Water cooling


High Frequency Reversing Polarity 15V 5000 Amp pictures

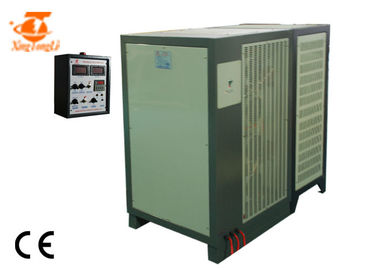

High Frequency Reversing Polarity 15V 5000 Amp 0

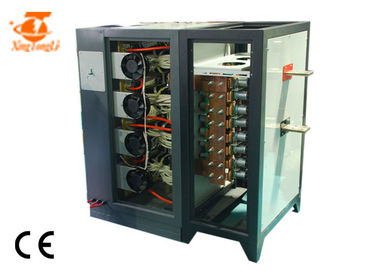

High Frequency Reversing Polarity 15V 5000 Amp 1




High Frequency Reversing Polarity 15V 5000 Amp​ Application


Different volt and current has different applications

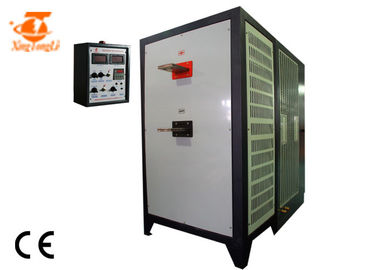

High Frequency Reversing Polarity 15V 5000 Amp 2


High Frequency Reversing Polarity 15V 5000 Amp​ Features

1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.


2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.


3 Schottky Barrier Diode
a: It has been expanded 4 times.


4 All the controlling boards get antiseptic treatment with imported lacquer.


High Frequency Reversing Polarity 15V 5000 Amp Optical function:

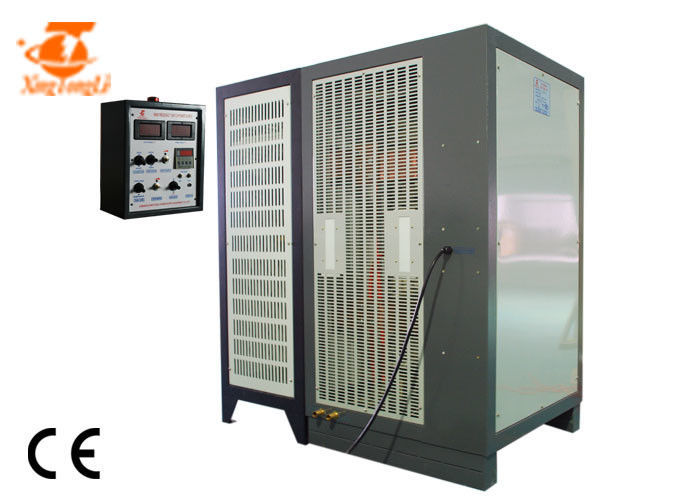

electroplating rectifier.jpg

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided

2. Control mode: Local control or Remote control(the length of cable is determined by customers)

3. Japan IGBT(the default choice) or Germany IGBT are adopted

4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function

5. Easy to operate and repaire


Other advantages

High Frequency Reversing Polarity 15V 5000 Amp 4




How to install rectifier

This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.


High Frequency Reversing Polarity 15V 5000 Amp 5



Our service


Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
