12v 3000a IGBT Dc Electroplating Power Supply , Nickel Copper Plating Rectifier

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD12-3000CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size:820*780*940mm Weight: 200kg
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Grey Input Voltage AC 380V
Phase 3 Phase Output Voltage DC 0~12V Adjustable
Output Current DC 0~3000A Adjustable Size 820*780*940mm
Weight 176kg Control Remote Control With 6 Meter Control Wire
High Light

plating power supply

,

electroplating rectifier

,

12v Nickel Copper Plating Rectifier

Leave a Message
Product Description

high frequency 12v 3000a forced air cooling copper electroplating rectifier



Features:

  • Our high frequency 12v 3000a forced air cooling copper electroplating rectifier uses famous brand components and international advanced full bridge inverter technology of precision machining, so that the performance of the whole dc yellow white zinc plating rectifier power supply 12v 200a is stable,quality is more reliable.
  • Whole high frequency 12v 3000a forced air cooling copper electroplating rectifier  has the function of over voltage, over current, over temperature, short circuit, equal and automatic protection alarm function and soft start function. And can be equipped with time control and computer interface.
  • DC output waveform is high frequency square waveform, ripple factor less than 1%, can increase plating, refuse passivation, enhance the gloss of the plating coating surface and the core of the dark corner of plating coating. And can reduce the loss of raw materials, to achieve a variety of special requirements of electroplating industry.

copper electroplating rectifier cooling method:

  • high frequency 12v 3000a forced air cooling copper electroplating rectifier adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.

high frequency 12v 3000a forced air cooling copper electroplating rectifier advantage of small size and energy saving:

  • Small size, light weight, the whole high frequency 12v 3000a forced air cooling copper electroplating rectifier use a full range of anti-corrosion technology, enhanced the product’s anti corrosion ability, extend the service life.
  • High efficiency, energy saving, work efficiency can reach more than 90%, any voltage current ratio is always linear matching. Eliminating the need for traditional rectifiers regulator and the main transformer loss, energy saving in more than 35%, greatly reducing the electro plating cost, which is the most sensible choice for surface treatment plating machine industry
  • dhigh frequency 12v 3000a forced air cooling copper electroplating rectifier specification and parameter:

    Plating rectifier Input voltage three phase  AC 380v
    Output voltage 0~12v adjustable
    Output current 0-3000A adjustable
    Voltage stability ≤1%
    Current stability ≤1%
    Ripple factor 1%-2%
    Efficiency ≥90%
    Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
    Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
    Cooling system Air cooling
    Control method local panel control
    Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
    Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
    Operating temperature -20-50℃
    Ambient temperature -30-65℃
    Ambient humidity ≤90%

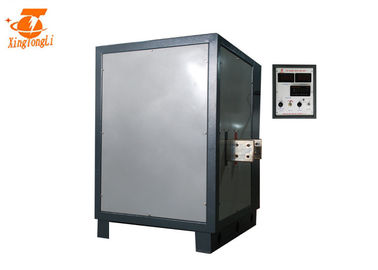

12v 3000a IGBT Dc Electroplating Power Supply , Nickel Copper Plating Rectifier 0

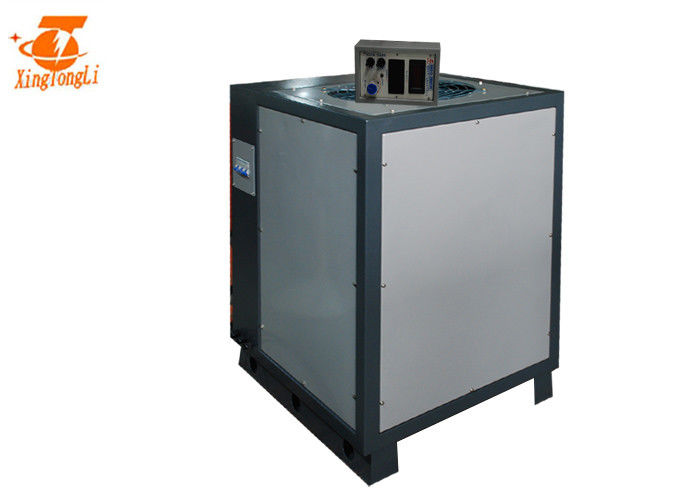

12v 3000a IGBT Dc Electroplating Power Supply , Nickel Copper Plating Rectifier 1









12v 3000a IGBT Dc Electroplating Power Supply , Nickel Copper Plating Rectifier 2

Cabinet:

dhigh frequency 12v 3000a forced air cooling copper electroplating rectifiercabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

high frequency 12v 3000a forced air cooling copper electroplating rectifier amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

high frequency 12v 3000a forced air cooling copper electroplating rectifierall control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

high frequency 12v 3000a forced air cooling copper electroplating rectifierIGBT capacity expanded 3 times,make the power supply more reliable
