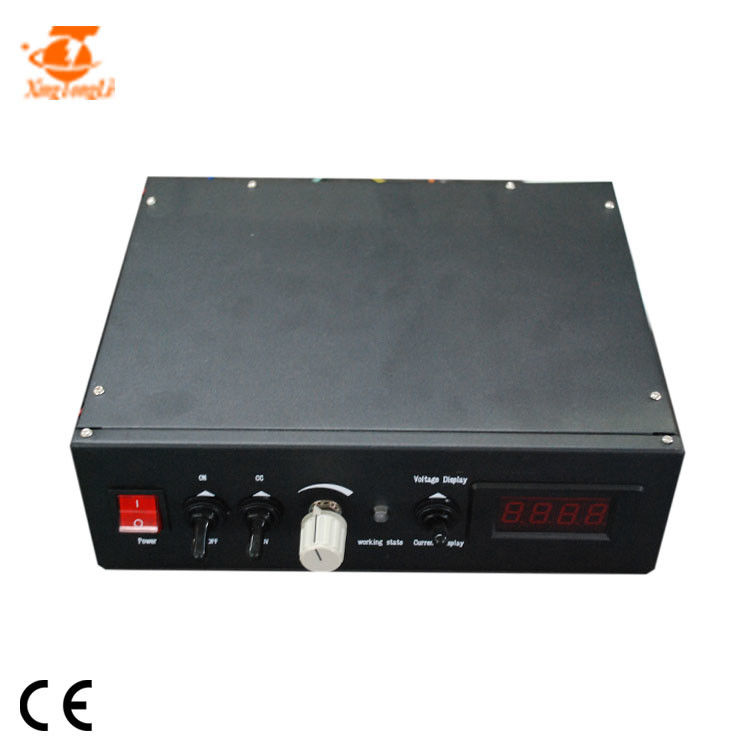

5V 10A High Accuracy pulse Gold Plating Rectifier Electroplating Power Supply
| Place of Origin | China |
|---|---|
| Brand Name | Xingtongli |
| Certification | CE RoHS ISO |
| Model Number | GKD(M)(H)5-10CVC |
| Minimum Order Quantity | 1 SET |
| Price | 210$~500$ |
| Packaging Details | Wooden case |
| Delivery Time | 5~7 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability | 100 SET/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Gold Plating | Efficiency | >85% |
|---|---|---|---|
| Control Way | Panel Control | Cooling Way | Air Cooling |
| Color | Black | Type | AC To DC |
| Ripple | <=1% | Weight | 8.5kg |
| High Light | copper plating rectifier,pcb electroplating power supply |
||
Product Description
5V 10A High Accuracy pulse Gold Plating Rectifier Electroplating Power Supply
The resaon why choose pulse power supply for gold plating:
The reason is that the stress, density and uniformity of the pulse nickel plating layer is far superior to that
of the DC rectifier nickel plating, which undoubtedly laid a solid foundation for gold electroplating, thereby
greatly improving the functional index of gold plating.
Specs for gold plating power supply
Specification
| SPECIFICATIONS FOR GKD(M)(H)5-10CVC | |||
| Input AC | 110V±10% | 1phase | 50/60Hz |
| Output | Volt | 0~5V Adjustable | |
| Current | 0~10A Adjustable | ||
| Power | 0.05KW | ||
| Efficiency | >85% | ||
| Ripple | <5% | ||
| output frequnecy | 0~100hz adjustable | ||
| Switching Frequency | 20KHz | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 8.5kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 273*222.5*88 | Cooling way | Air cooling |

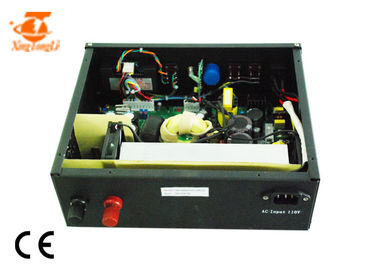

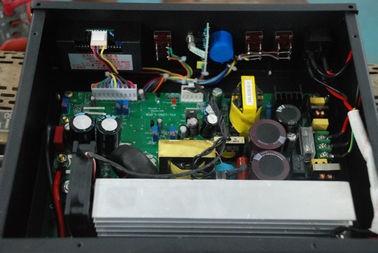

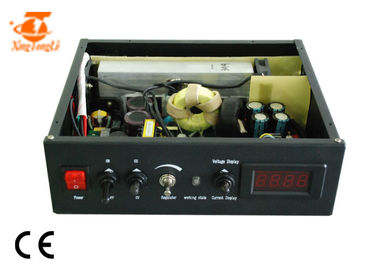

Some pics was followed
Back
Application
Different volt and current has different applications
Setup:
1. PLEASE try to use clean dry gloves when touching the hood controls, do not splatter wet chemicals all over
controls. Keep it clean.
2. Use of heavy green gloves, a face shield and apron is required for all wet work within the hood. Remove your
green gloves to touch anything on the power supply control panel.
3. Start solution circulation pump running.
4. Enable heating of solution. Set temperature on controller for desired process if need be, this value should be
already set and correct, verify.
5. Allow solution to come to temperature and stabilize. Keep the lid on the solution as much as possible during
your work to reduce evaporation.
6. Verify that the power supply is in STANDBY mode.
7. Verify that the proper anode is in the tank, held in place by the grooves on the sides in the front end of the tank.
8. Define your plating recipe in the power supply controller (see power supply documentation section of this manual).
9. Reset the totalizer (charge meter) on power supply to zero
Advantages of gold plating for pulse power supply:
The advantages of pulse power electroplating can be better reflected, especially in gold plating. The
compact coating of crystal plating layer can be obtained by gold plating of pulse power supply, which
not only significantly improves the smoothness, corrosion resistance, weldability, wear resistance and
high temperature performance, but also has a large degree of discoloration and saves a lot of gold
Our service
Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
