High Frequency Switching Power Supply
>
|
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE RoHS |
| Model Number | GKD(M)(H)6-600CVC |

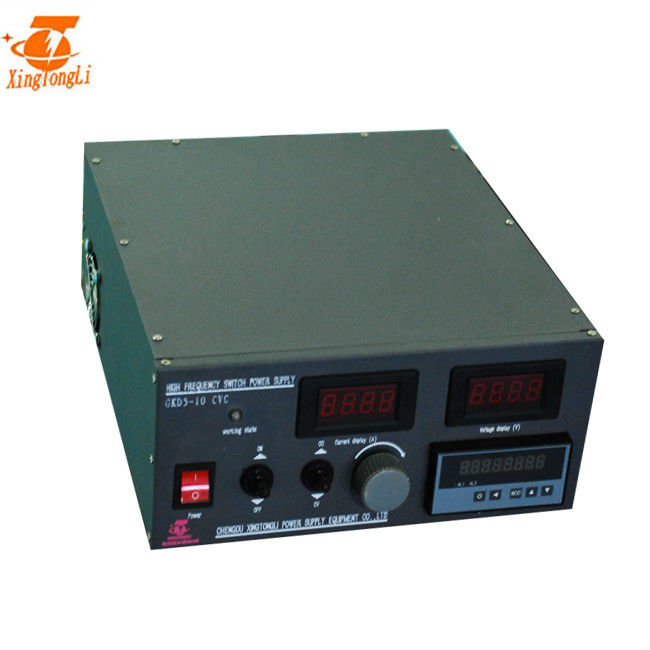

6V 600A high frequency switch mode plating rectifier power supply
6V 600A high frequency switch mode plating rectifier power supply is used to electroplate. But not only for chrome electroplating, but other many applications. Such as zinc, nickel,copper and so on.

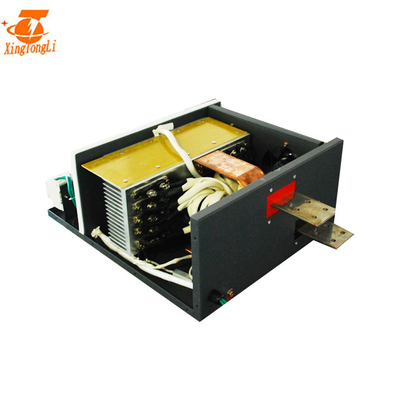

Some inner part showed followed, just diffierent color.
Some pics was followed
Application
Different volt and current has different applications
Specification
| SPECIFICATIONS FOR GKD(M)(H)6-600CVC | |||
| Input AC | 380V±10% | 3phase | 50/60Hz |
| Output DC | Volt | 0~6V Adjustable | |
| Current | 0~600A Adjustable | ||
| Power | 3.6KW | ||
| Efficiency | >85% | ||
| Switching Frequency | 20KHz | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection | ||
| Working Condition (Temperature) | -10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 30kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 525*410*240mm | Cooling way | Air cooling |
1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided
2. Control mode: Local control or Remote control(the length of cable is determined by customers)
3. Japan IGBT(the default choice) or Germany IGBT are adopted
4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
5. Easy to operate and repaire
Photos :
1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.
2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.
3 Schottky Barrier Diode
a: It has been expanded 4 times.
4 All the controlling boards get antiseptic treatment with imported lacquer.
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
