8V 3000A Remote Control Zinc Electro Plating Rectifier Power Supply
|Place of Origin||China|
|Minimum Order Quantity||1 SET|
|Packaging Details||Wooden case790*820*990mm|
|Delivery Time||12~15 working days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal|
|Supply Ability||100 SET/month|
|Control Way||Remote Control||Cooling Way||Air Cooling|
|Color||Grey And Black||Type||AC To DC|
plating power supply,
Zinc Electro Plating Rectifier Power Supply

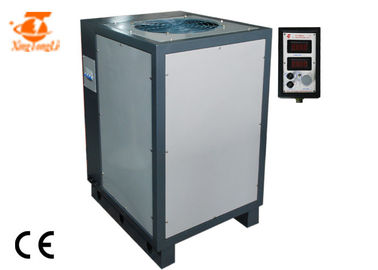

8V 3000A remote control zinc electro plating rectifier power supply
8V 3000A remote control zinc electro plating rectifier power supply is used to electroplate. But not only for zinc electroplating, but other many applications. Such as chrome, nickel,copper and so on.
The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.

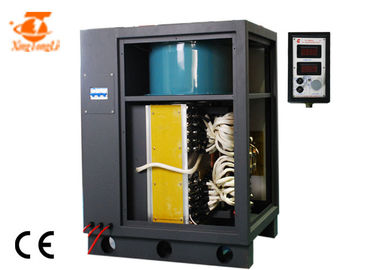

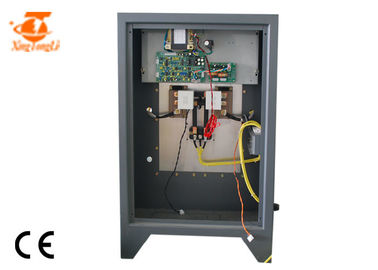

Some inner part showed followed, just diffierent color.

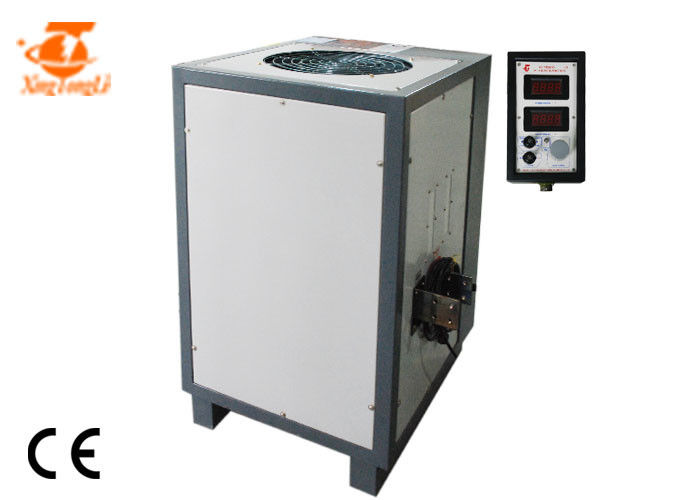

Some pics was followed
Different volt and current has different applications
|SPECIFICATIONS FOR GKD(M)(H)8-3000CVC|
|Output DC||Volt||0~8V Adjustable|
|Protection||Short circuit protection
Phase lack protection
Input over/low voltage protection
|-10℃~50℃||Control mode||Panel control
|Net weight||140kg||Working mode||Constant Voltage(CV)
|Dimension(mm)||740*620*990mm||Cooling way||Air cooling|
1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided
2. Control mode: Local control or Remote control(the length of cable is determined by customers)
3. Japan IGBT(the default choice) or Germany IGBT are adopted
4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
5. Easy to operate and repaire
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.
2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.
3 Schottky Barrier Diode
a: It has been expanded 4 times.
4 All the controlling boards get antiseptic treatment with imported lacquer.
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
