15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating
  • 15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating
  • 15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating
  • 15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating

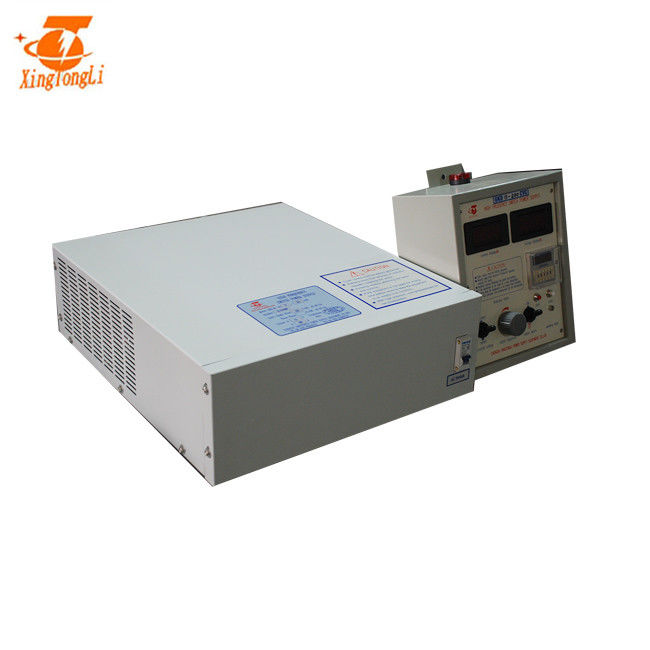

15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number GKD(M)(H)15-120CVC
Product Details
Application:
Hard Chrome Plating Rectifier
Efficiency:
>85%
Control Way:
Local Control
Cooling Way:
Air Cooling
Color:
Grey And Black
Type:
AC To DC
Weight:
18
Work Mode:
CC & CV
High Light:

electroplating rectifier

,

dc rectifier for electroplating

,

Dc Power Supply Switching Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
300$~600$
Packaging Details
Wooden case 640*490*280mm
Delivery Time
14~18 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

15V 120 amp dc power supply switching for bottle plating



High-frequency high-power switching power supply equipment is used for a series of electrochemical surface



treatments such as electroplating, oxidation electrolysis, and electrophoresis. It has a completely different working



principle from the previous power frequency thyristor rectifier. Therefore, its working principle determines that



the power supply has higher conversion efficiency and power factor than the silicon controlled rectifier. Using



this power supply can significantly reduce the cost of electroplating and improve product quality. Compared with



thyristor power supply, the energy consumption of electroplating can be saved by 15% -30%, bringing considerable



economic benefits to users. In addition, the power supply is small in size and light in weight (water cooling is smaller



than air cooling), and it is very easy to install and use, which can save users valuable production space.




Specification

SPECIFICATIONS FOR GKD(M)(H)15-4000CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~15V               Adjustable
Current 0~120A         Adjustable
Power 1800W
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 18kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 640*490*280mm Cooling way Air cooling






Some pics was followed



15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating 0

15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating 1





Application

Different volt and current has different applications

15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating 2




Features:

The high-frequency electroplating power supply can be used in the plating solution of different materials

such as gold, silver, cadmium, copper, zinc, tin and alloy. Compared with traditional rectifiers, it has unique

characteristics: small power supply, light weight, high efficiency and high control accuracy. And improve the

current intensity of the dead corner part, make the uniformity of the plating layer of each part of the object to

be plated is uniform, the surface of the object to be plated is delicate, and the glossiness is high. Anti-salt

spray acidification measures are adopted to increase the service life of the power supply in harsh environments.
electroplating rectifier.jpg


1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire







15V 120 Amp Dc Power Supply Switching Rectifier For Bottle Plating 4
