15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier
  • 15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier
  • 15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier
  • 15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier

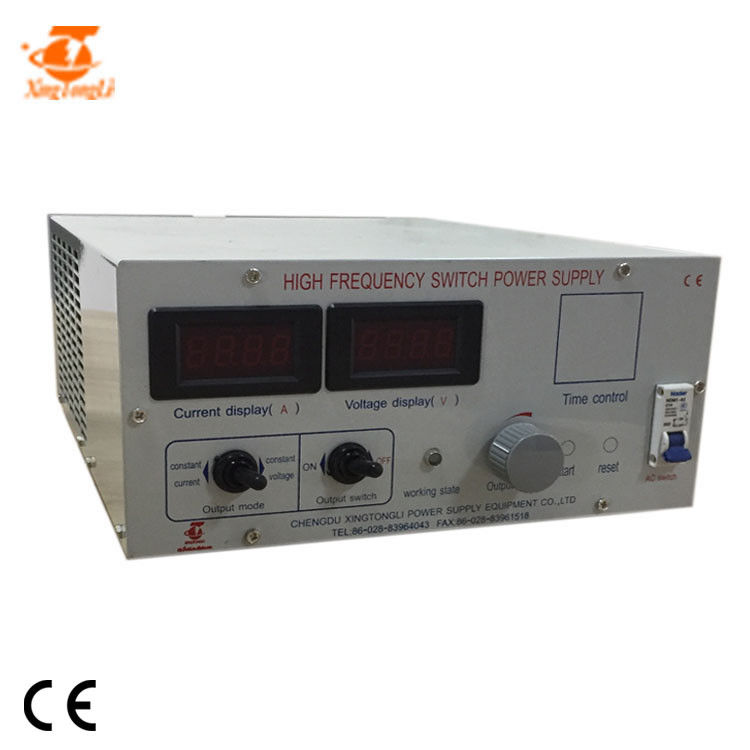

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier

Place of Origin China
Brand Name Xingtongli
Certification CE
Model Number GKD(M)(H)15-100CVC
Product Details
Application:
Electroplating
Efficiency:
>85%
Control Way:
Local Control
Cooling Way:
Air Cooling
Color:
Grey
Type:
AC To DC
Highlight:

electroplating rectifier

,

dc rectifier for electroplating

,

IGBT Dc Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Wooden case 490*430*360mm
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

15V 100 amp dc power supply switching with IGBT



15V 100 amp dc power supply switching with IGBT is used to electroplating.





Specification

SPECIFICATIONS FOR GKD(M)(H)15-100CVC
Input AC 220V±10% 1phase 50/60Hz
Output DC Volt 0~15V Adjustable
Current 0~100A Adjustable
Power 1.5KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 11kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 365*305*142 Cooling way Air cooling


electroplating rectifier.jpg



Features



1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire

Some pics was followed

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 1



15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 2

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 3

Application

Different volt and current has different applications

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 4











Other advantages

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 5



1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.



2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



3 Schottky Barrier Diode
a: It has been expanded 4 times.



4 All the controlling boards get antiseptic treatment with imported lacquer.



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

15V 100 Amp IGBT Dc Power Supply Switching Electroplating Rectifier 6
