12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier
  • 12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier

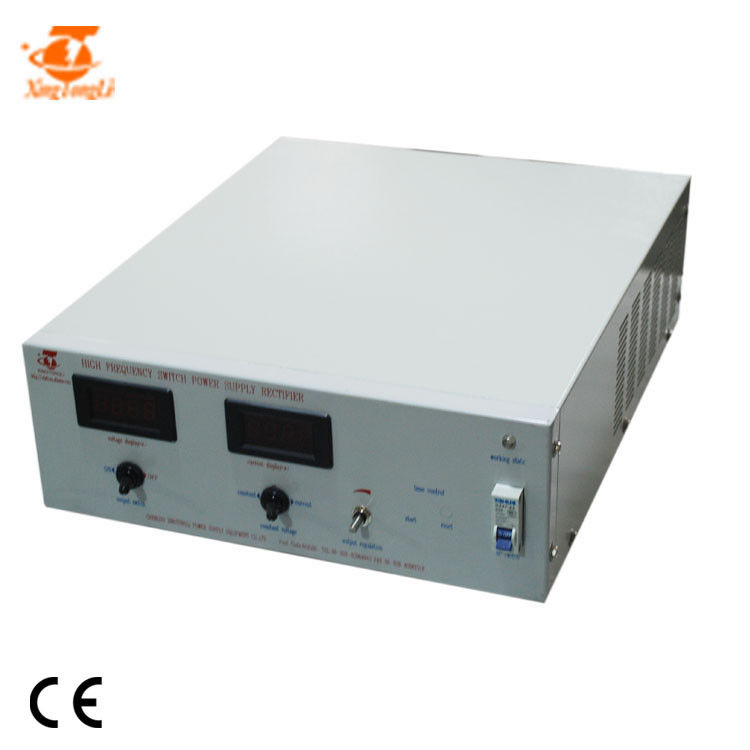

12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier

Place of Origin China
Brand Name Xingtongli
Certification CE
Model Number GKD(M)(H)15-200CVC
Product Details
Application:
Electroplating Power Supply
Efficiency:
>85%
Control Way:
Local Control
Cooling Way:
Air Cooling
Color:
Grey
Type:
AC To DC
Name:
Dc Power Supply Rectifier
High Light:

plating power supply

,

dc rectifier for electroplating

,

High Frequency Switching Plating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Wooden case 505*430*282mm
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

15V 100 amp dc plating power supply with IGBT


High frequency switch electroplating rectifier, also known as high frequency switch power supply:

This is a new type of DC power supply rectifier - high frequency switching power supply. It combines the advantages of silicon rectifier power supply waveform smoothness and easily adjustable silicon controlled rectifier, while having the highest current efficiency (up to 90%), the smallest volume, and, needless to say, it is the most promising electroplating rectifier power supply. Manufacturing technology has solved the power supply problem and thousands of amperes of power switch electroplating rectifier has entered the practical stage.

Some pics was followed


12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 0
12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 1



Plating rectifier power supply conversion principle:

Make the AC power grid pass the EMI anti-electromagnetic interference filter to directly rectify and filter the wave. The DC voltage is converted into a square wave frequency of tens or hundreds of KHz by the inverter, and then isolated by the high-frequency transformer to reduce the voltage and then pass the high voltage. The frequency filter outputs a DC voltage. After sampling, comparison, amplification and control, the drive circuit and power converter control the duty cycle of the IGBT to obtain a stable output voltage (or output current).

High-frequency switch electroplated rectifier control tube in the working state, low power consumption loss, that is, the transformer efficiency can reach 75% ~ 90%, small size, light weight, and accuracy and ripple factor are better than silicon rectifier, in the full output range Can achieve the precision required for production. The electroplating rectifier has self-protection capability and can be started and stopped arbitrarily under load. It is easy to connect with a computer and brings great convenience to production automation, so it has been widely used in the PCB electroplating industry.

Application
Different volt and current has different applications
12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 2

Specification

SPECIFICATIONS FOR GKD(M)(H)15-200CVC
Input AC 220V±10% 1phase 50/60Hz
Output DC Volt 0~15V          Adjustable
Current 0~200A        Adjustable
Power 3KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 19kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm)

465*390*162

Cooling way Air cooling

Features
electroplating rectifier.jpg


1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided
2. Control mode: Local control or Remote control(the length of cable is determined by customers)
3. Japan IGBT(the default choice) or Germany IGBT are adopted
4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
5. Easy to operate and repaire

Other advantages
12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 4

1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.


2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.


3 Schottky Barrier Diode
a: It has been expanded 4 times.


4 All the controlling boards get antiseptic treatment with imported lacquer.

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 5
12v 15v 200a Grey Electroplating High Frequency Switching Plating Rectifier 6

Our service


Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered



FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
