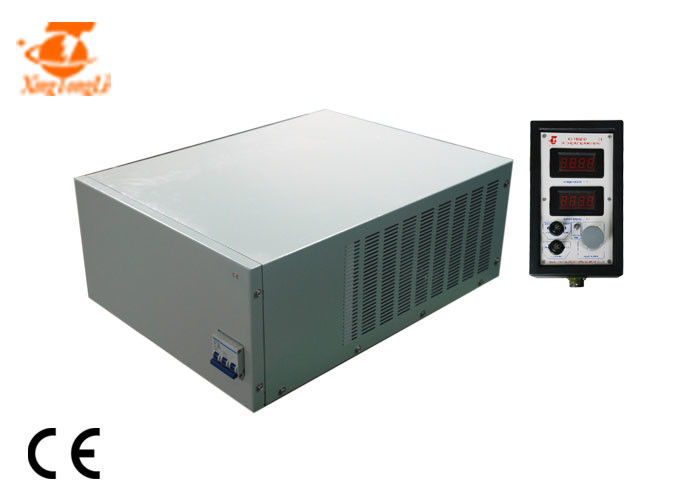

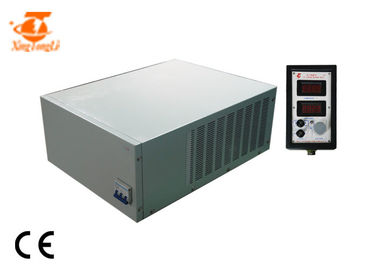

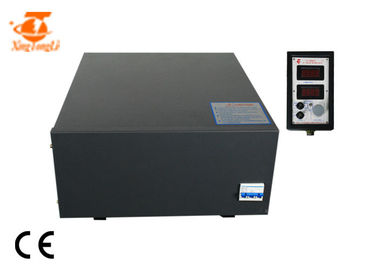

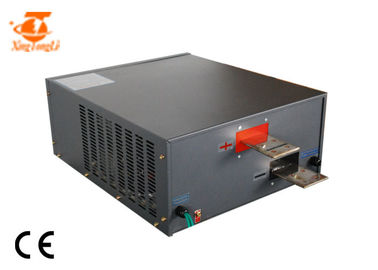

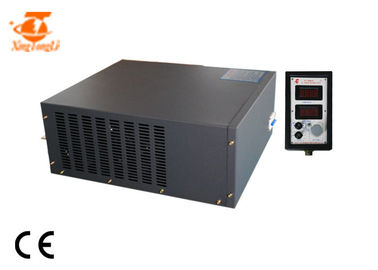

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control
  • DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control
  • DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control
  • DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control
  • DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control

Place of Origin China
Brand Name Xingtongli
Certification CE
Model Number GKD(M)(H)18-1000CVC
Product Details
Application:
Electroplating
Efficiency:
>85%
Control Way:
Remote Control
Cooling Way:
Air Cooling
Color:
Grey Or Black
Type:
AC To DC
High Light:

electroplating rectifier

,

dc rectifier for electroplating

,

Electroplating Power Supply Rectifier 18V

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
Wooden case 760*540*440mm
Delivery Time
8~12 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

18V 1000A dc constant current electroplating rectifier



18V 1000A dc constant current electroplating rectifier is used to electroplate. But not only for chrome electroplating, but other many applications. Such as zinc, nickel,copper and so on.



Some inner part showed followed, just diffierent color.



Some pics was followed

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control 0





Application

Different volt and current has different applications

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control 1



Specification

SPECIFICATIONS FOR GKD(M)(H)18-1000CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~18V             Adjustable
Current 0~1000A           Adjustable
Power 18KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 30kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 525*410*240mm Cooling way Air cooling

Features
electroplating rectifier.jpg


1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire



Other advantages

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control 3



1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.



2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



3 Schottky Barrier Diode
a: It has been expanded 4 times.



4 All the controlling boards get antiseptic treatment with imported lacquer.



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control 4

DC Constant Current Electroplating Power Supply Rectifier 18V 1000A Remote Control 5



Our service



Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered





FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
