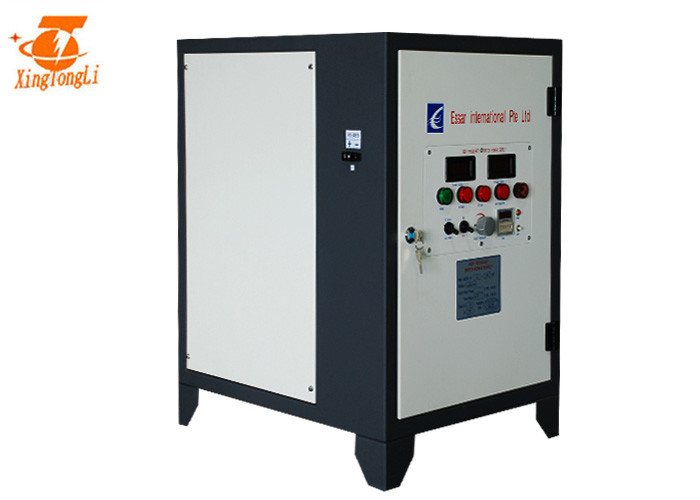

48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer
  • 48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer
  • 48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer

48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD48-200CVC
Product Details
Product Name:
48v 100A Air Cooling IGBT Electroplated Coating Rectifiers
Input Voltage:
AC 415V
Phase:
3 Phase
Output Voltage:
DC 0~48v Adjustable
Output Current:
DC 0~200A Adjustable
Work Mode:
CC CV
Size:
750*560*780mm
Weight:
75kg
Color:
Grey
High Light:

electrocoagulation rectifier

,

waste water treatment rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size:750*560*780mm Weight:114kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description

48v 100A air cooling IGBT electroplated coating rectifiers with timer



Specification

SPECIFICATIONS FOR GKD500-40CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~48V Adjustable
Current 0~200A Adjustable
Power 9.6KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 90kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 715*485*860mm Cooling way Air cooling





intruduction



At present, the method of effectively suppressing plate passivation is to replace the DC current with pulse current power supply and reduce the electrolytic polarization. The intermittent period of pulse current can cause the electrolyzed metal ions to react fully with OH- in the water to form a flocculant, and with the water out of the electrode area, thereby reducing the metal ion oxidation film probability. Substrate commutation can periodically change the direction of polarization, damage the fixed polarization region and effectively inhibit the passivation.



48v 100A air cooling IGBT electroplated coating rectifiers with timer:
Electrocoagulation method (waste) water treatment equipment is water treatment equipment. It uses principle of electrolysis and coagulation, to make multiple physical and chemical effects towards pollution (waste) water pollutants in the redox, neutralization, condensation, air separation and other, which rapid completion of sewage (waste) water treatment. With advantages of easy maintenance, high degree of automation, automatic plate cleaning, processing efficiency and stability, small workplace, high processing speed and so on.



48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer 0

48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer 1

48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer 2







Cabinet:

48v 100A air cooling IGBT electroplated coating rectifiers with timer adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

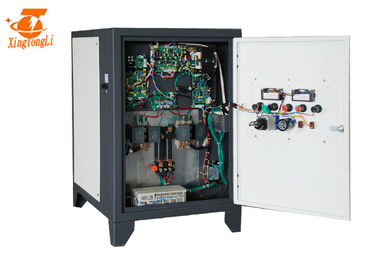

48v 100A air cooling IGBT electroplated coating rectifiers with timer with reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

60v 125A Switch Mode IGBT TR rectifier for electrochilorination system adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable



48 v 200 a Air Cooling IGBT Rectifier Electroplated Coating With Timer 3
