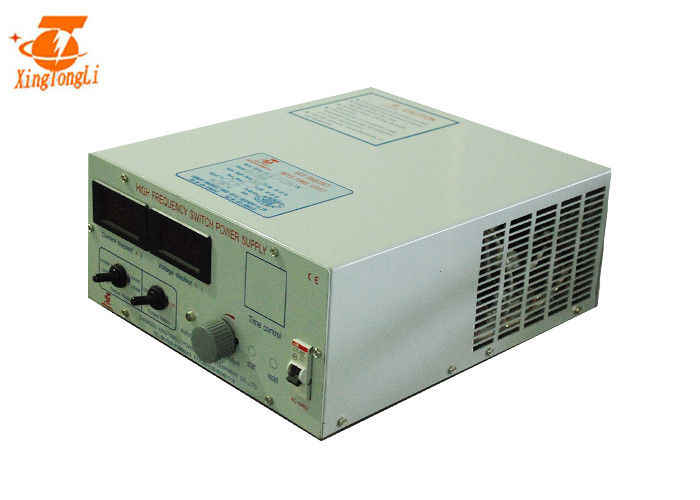

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control

Place of Origin China
Brand Name Xingtongli
Certification CE RHOS
Model Number GKD12-100CVC
Minimum Order Quantity 1 SET
Price Negotiable
Packaging Details Wooden case
Delivery Time 5~7 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability 100 SET/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Application Gold Plating Rectifier Efficiency >85%
Control Way Panel Control Cooling Way Air Cooling
Color Gray Type AC To DC
Size 420*310*145 Weight 10kg
High Light

pcb plating rectifier


pcb electroplating power supply

Leave a Message
Product Description


copper electroplating rectifier machine with timer ,panel control


Through EMI anti electromagnetic interference filter, direct rectification, filter wave to make AC power grid, through inverter to convert DC voltage into square wave frequency of tens or hundreds of kHz, then through high-frequency transformer isolation, reduce the voltage, and then through high-frequency filter output DC voltage. After sampling, comparing, amplifying and controlling, driving circuit and power converter control duty cycle of IGBT to obtain stable output voltage (or output current).

Under the working condition, the power loss of the control tube of high frequency switch electroplating rectifier is small, the efficiency can reach 75% - 90%, the volume is small, the weight is light, the precision and ripple coefficient are better than silicon rectifier. The output range can reach the precision required by production. Electroplating rectifier has self-protection ability, can start and stop at will under load. It is easy to connect with computer, which brings great convenience to automatic production, so it has been widely used in PCB electroplating industry.

Some pics was followed

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 0

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 1



Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 2



Different volt and current has different applications

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 3



Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~12V            Adjustable
Current 0~100A        Adjustable
Power 1.2KW
Efficiency >85%
Ripple <5%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 7.5kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 273*222.5*88 Cooling way Air cooling
electroplating rectifier.jpg

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided

2. Control mode: Local control or Remote control(the length of cable is determined by customers)

3. Japan IGBT(the default choice) or Germany IGBT are adopted

4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function

5. Easy to operate and repaire


Other advantages

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 5


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.


2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.


3 Schottky Barrier Diode
a: It has been expanded 4 times.


4 All the controlling boards get antiseptic treatment with imported lacquer.


How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

Gray Single Phase Small Igbt 12v 100a PCB Rectifier Gold Plating With Panel Control 6

The main circuit of the power supply includes the main transformer, the power rectifier assembly and some other testing and protection devices. The main transformer function of the power supply is to reduce the AC current / voltage to the voltage required by the electroplating process. The thyristor rectifier uses a frequency (50Hz / 60Hz) transformer, while the high-frequency switching power supply uses a high-frequency (10-50KHZ) transformer. The detection device includes voltmeter and current transformer. The protection device is mainly used for over-current protection of power supply rectifier elements. The control circuit includes thyristor or IGBT, trigger control circuit, power soft start circuit, over-current, over-voltage protection circuit, power phase protection circuit.
