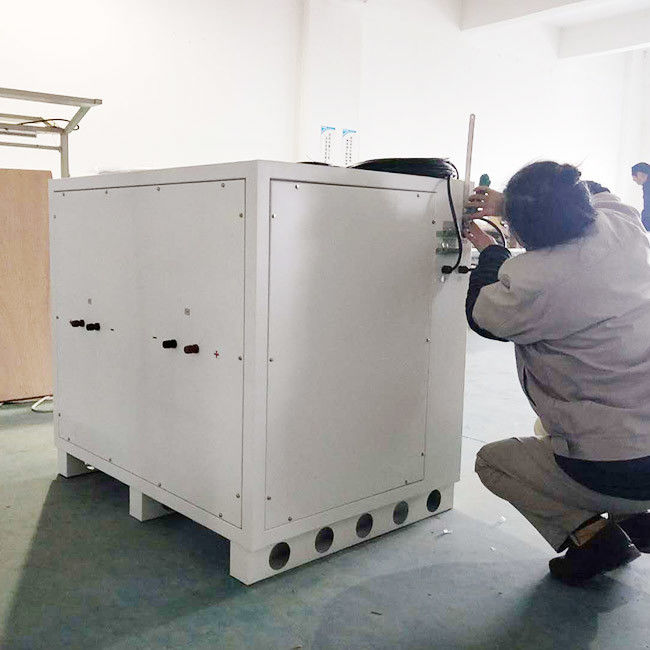

500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment
  • 500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment
  • 500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment
  • 500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment

500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD500-60CVC
Product Details
Product Name:
500v 60a White Color Electrocoagulation Waste Water Treatment Power Supply
Input Voltage:
AC 415V
Phase:
3 Phase
Output Voltage:
DC 0~500v Adjustable
Output Current:
DC 0~60A Adjustable
Work Mode:
CC CV
Size:
750*560*780mm
Weight:
75kg
Color:
Grey
High Light:

electrocoagulation rectifier

,

waste water treatment rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size:750*560*780mm Weight:114kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description

500v 60a white color Electrocoagulation waste water treatment power supply



intruduction



Electrocoagulation (waste) water treatment equipment is water treatment equipment. It uses the principle of electrolysis and condensation to produce many kinds of physical and chemical effects on the polluted (waste) water pollutants in oxidation-reduction, neutralization, condensation, air separation, etc., so as to rapidly complete the treatment of sewage (waste) water. It has the advantages of convenient maintenance, high degree of automation, automatic plate cleaning, stable processing efficiency, small workplace and fast processing speed

60v 125A Switch Mode IGBT TR rectifier for electrochilorination system specification and parameter:



 Input voltage

three phase 415V AC
Output voltage 0~500v adjustable
Output current

0-60A adjustable

Voltage stability ≤1%
Current stability ≤1%
Ripple factor 1%-2%
Efficiency ≥90%
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
Cooling system Air cooling/Water cooling
Control method Manual/PLC
Display contents Voltage meter/Current meter/Working/Over temp/Error, etc..
Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
Operating temperature -20-50℃
Ambient temperature -30-65℃
Ambient humidity ≤90%
Working loading Full capacity operation, more than 1,000 meters above sea level, reduced load operation

500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment 0

500 V 60 A White Color Electrocoagulation Power Supply Waste Water Treatment 1







Cabinet:

48v 100A air cooling IGBT electroplated coating rectifiers with timer adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

48v 100A air cooling IGBT electroplated coating rectifiers with timer with reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

60v 125A Switch Mode IGBT TR rectifier for electrochilorination system adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable
