Mini Aluminum Anodizing Power Supply DC Rectifier With 4~20mA Signal Interface

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD24-200CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size: 750*560*900mm Weight:114kg
Delivery Time 7~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200 units /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

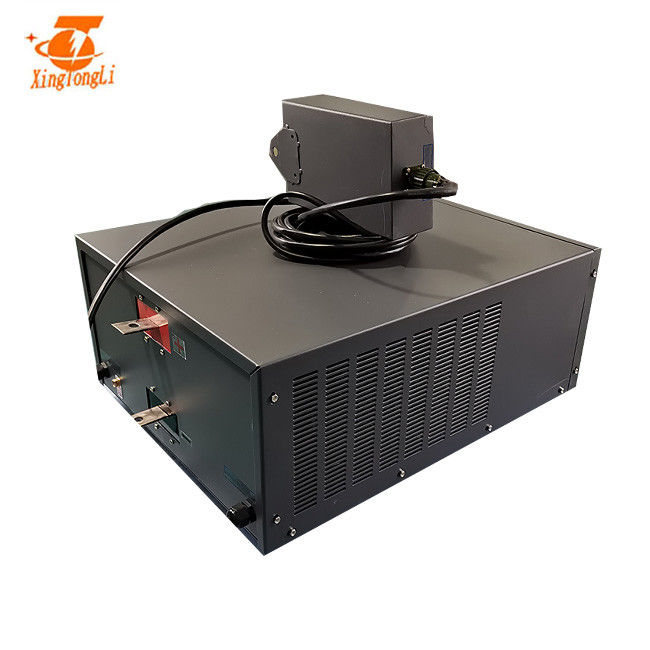

Product Name 24v 200a Aluminum Anodizing DC Rectifier With 4~20mA Signal Interface Input Voltage 220V
Phase 1 Phase Output Voltage 0~24v Adjustable
Output Current DC 0~200A Adjustable Cooling Air Cooling
Size 605*415*240mm Weight 35kg
Control Analog Interface 4~20mA
High Light

anodizing rectifier


anodising rectifier

Leave a Message
Product Description


24v 200a Aluminum anodizing DC rectifier with 4~20mA signal interface​ main technical characteristics:


Aluminum anodic oxidation DC rectifier is used for anodizing aluminum. This process is actually the process of forming aluminum oxide film from aluminum profile or aluminum alloy profile by electrolytic aluminum surface. Our rectifiers also include imitation gold electroplating power supply, pulse electroplating rectifier, high-frequency electroplating power supply, DC stabilized power supply, battery charging power supply, DC motor test power supply, experimental measurement power supply, pulse superimposed hard oxide DC rectifier, special silicon AC / DC rectifier , Electric furnace heating power supply, high power (electrolysis, oxidation) power supply and some supporting power supply equipment, etc.


Mini Aluminum Anodizing Power Supply DC Rectifier With 4~20mA Signal Interface 0

Mini Aluminum Anodizing Power Supply DC Rectifier With 4~20mA Signal Interface 1


Input AC 220V±10% 1phase 50/60Hz
Output DC Volt 0~24V Adjustable
Current 0~200A Adjustable
Power 4.8KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 35kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 605*415*240mm Cooling way Air cooling

Characteristics of aluminum anodized dc rectifier:

It has the advantages of small size, light weight, high efficiency and high control precision.

The pulse width modulation power supply introduces the international advanced technology, adopts the international brand IGBT power module;

Perfect protection function, with stable voltage and stable current working mode, and with filtering, overvoltage, overheat, short circuit, missing phase protection function and soft start function.

The power supply adopts special design control system, and the internal structure is acid and alkali resistant, which greatly improves the service life of the product.


A. Digital timing system;

B. Ampere hour meter;

C. Standard interface;

D. Control signal interface.

Mini Aluminum Anodizing Power Supply DC Rectifier With 4~20mA Signal Interface 2

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
Mini Aluminum Anodizing Power Supply DC Rectifier With 4~20mA Signal Interface 3

Other advantages

1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.
