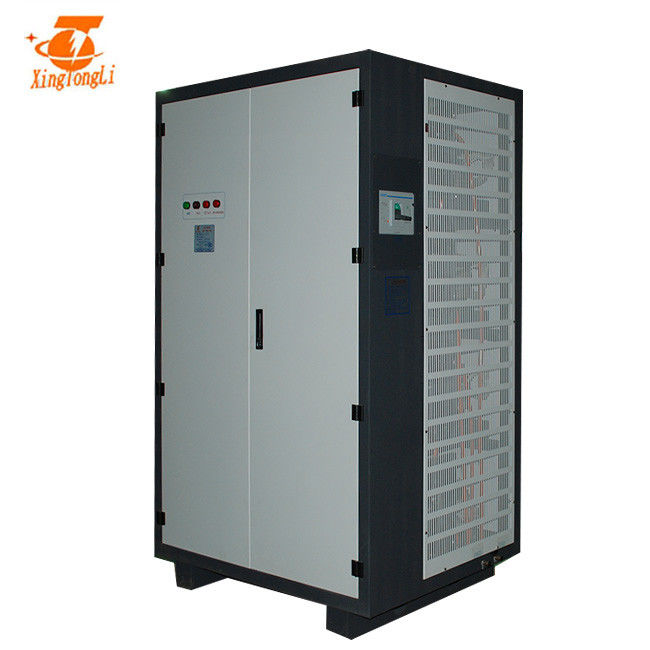

35v 6000a Switching Mode Igbt Power Supply For Aluminum Anodizing

24v 200a Aluminum anodizing DC rectifier with 4~20mA signal interface​ main technical characteristics:

Switch mode power supply working principle:

Principle of Switch mode power supply control regulator for voltage stabilization:

Switch knob turn on and off repeatedly to a certain time interval, when the switch is turned on, the input power supply through switch knob and filter circuit to supply loading, during the entire switch turn on duration, the power supply provided energy to loading;
When switch disconnected, input power supply interrupted to provide energy. Be seen, the input power supply to provide energy for load is intermittent, in order to load can be obtain a continuous energy power supply, switching mode power supply must have a energy storage device, when the switch turns on, there is a part of energy stored in the switch, when disconnect, the stored energy will release to load. Inductance used to store energy, when the switch is off, stored energy in the inductance through the diode release to the load, make sure that the load to obtain a continuous and stable energy, because the diode enable load to get continuous current, so called continuous current diodes. This is the way switch mode power supply working.

Specification

Characteristics of aluminum anodized dc rectifier:

It has the advantages of small size, light weight, high efficiency and high control precision.

The pulse width modulation power supply introduces the international advanced technology, adopts the international brand IGBT power module;

Perfect protection function, with stable voltage and stable current working mode, and with filtering, overvoltage, overheat, short circuit, missing phase protection function and soft start function.

The power supply adopts special design control system, and the internal structure is acid and alkali resistant, which greatly improves the service life of the product.

A. Digital timing system;

B. Ampere hour meter;

C. Standard interface;

D. Control signal interface.

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

Other advantages


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.
