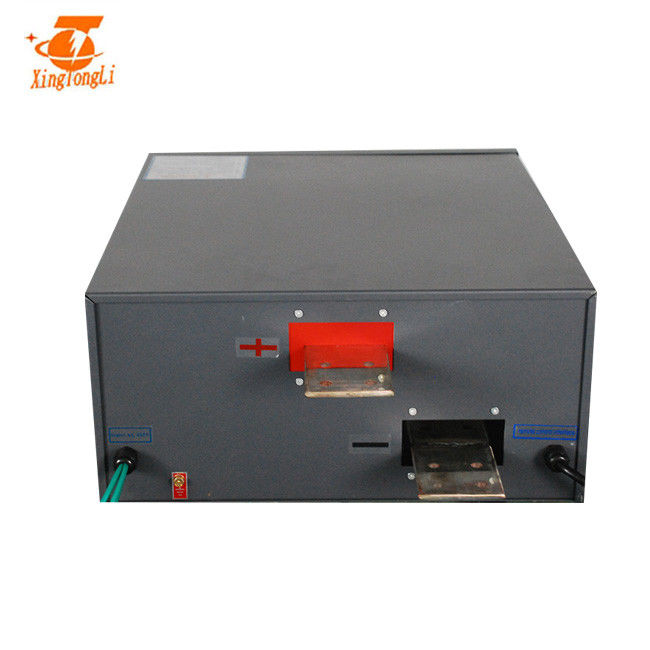

48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface
  • 48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface
  • 48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface
  • 48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface

48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKD48-300CVC
Product Details
Product Name:
48V 300A DC Output Water Elelctrolytc Power Supply With 4~20mA Interface
Input Voltage:
AC 380V/220V/415V/480V
Phase:
3 Phase
Output Voltage:
DC 0~48v Adjustable
Output Current:
DC 0~300A Adjustable
Work Mode:
CC CV
Size:
690*550*520mm
Weight:
45kg
Color:
Black
High Light:

electrolytic rectifier

,

electrolysis machine power supply

,

48V Electrolysis Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
1070$~1200$
Packaging Details
Single wooden case packing size:690*550*520mm Weight:70kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description



48V 300A DC output water elelctrolytc power supply with 4~20mA interface Specification and parameter





Description of high frequency electrolytic power:

Water treatment power supply electrolysis of water to produce hydrogen and oxygen. The electrolysis of water basically is under external electric field to split water into H2 and O2. DC power supply electrolysis is a very powerful means to promote redox reactions, many other redox difficult to react, can be via DC power supply electrolysis to achieve



The main control board adopts high anti-interference high-power digital circuit trigger system, which has the control anti-interference ability. It has the advantages of high control precision, good stability and reliable operation.

6. The box body adopts cutting magnetic chain to reduce eddy current consumption, and the box body adopts integral spraying.

Control method: comprehensive simulation control and computer control.



input voltage 380v 3 phase 50/60hz
Output voltage 0~48v adjustable
Voltage stability 0~300a adjustable
Current stability ≤1%
Ripple factor 1%-2%
efficiency ≥90%
weight 45kg
dimension 69*55*52cm
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
Cooling system Air cooling
Control method local control/remote control/plc control
Display contents Voltage meter/Current meter/Working/Over temp/Error,
Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
Operating temperature -20-50℃
Ambient temperature -30-65℃
Ambient humidity ≤90%



48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface 0

48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface 1

48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface 2

Cabinet:

48v 100A air cooling IGBT electroplated coating rectifiers with timer adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

48v 100A air cooling IGBT electroplated coating rectifiers with timer with reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

60v 125A Switch Mode IGBT TR rectifier for electrochilorination system adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable



Application of high frequency electrolytic power supply:

Mainly used in non-ferrous metal electrolysis: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; gold, silver and other metals smelting; neodymium iron boron rare earth smelting; hard alloy, diamond smelting; salt water, potassium electrolysis to produce caustic soda, potash, sodium system; fire electrical heating materials, and other types of high-power DC power supply.



48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface 3

48V 300A DC Output Water Electrolysis Power Supply With 4~20mA Interface 4

1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier
