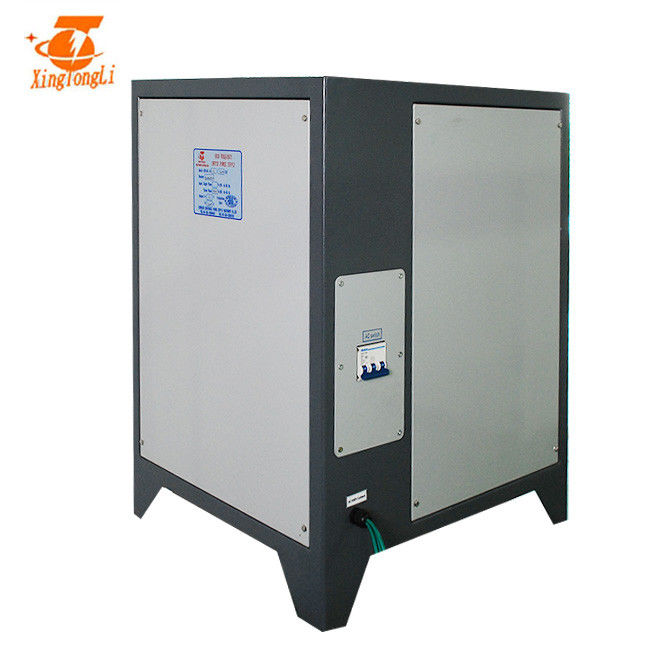

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling
  • 8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling
  • 8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling
  • 8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number GKD8-2000CVC
Product Details
Application:
Air Cooling 8V 2000A Adjustable IGBT Plating Power Supply Machine
Efficiency:
>85%
Control Way:
Remote Control/local Panel Control
Cooling Way:
Air Cooling
Color:
Black
Type:
Igbt HF Type
Dimension:
715*485*860mm
Weight:
80kg
Highlight:

plating power supply

,

dc rectifier for electroplating

,

Electroplating Power Supply Machine

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
1140$~1355$
Packaging Details
Wooden case 715*485*860mm
Delivery Time
9~12 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

air cooling 8V 2000A adjustable IGBT plating power supply machine



air cooling 8V 2000A adjustable IGBT plating power supply machine was used to electroplate nickel and other mental. Saving energy, light weight



and small size. We re-desgined 2000A rectifier. It could be smaller and lighter. The weight is lighter than before 10kg.



The magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 0

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 1









Application

Different volt and current has different applications

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 2



Specification

SPECIFICATIONS FOR GKD(M)(H)10-2000CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~8V               Adjustable
Current 0~2000A         Adjustable
Power 20KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 80kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 480*600*740mm Cooling way Air cooling

Features

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided


2. Control mode: Local control or Remote control(the length of cable is determined by customers)


3. Japan IGBT(the default choice) or Germany IGBT are adopted


4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function


5. Easy to operate and repaire



Package:

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 3

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 4





1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.



2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.



3 Schottky Barrier Diode
a: It has been expanded 4 times.



4 All the controlling boards get antiseptic treatment with imported lacquer.



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

8V 2000A Adjustable IGBT Electroplating Power Supply Machine Air Cooling 5



The user can adjust the 12V DC power supply according to the requirements:

During the use of 12 V DC power supply for electroplating, according to our company's experience, users can carry out regular inspection and maintenance according to the environment. The following are the simple steps of maintenance and overhaul:



Before opening the power box, disconnect the external power supply for more than 30 minutes.

After opening the power box, clean the dust of each part with a dry cloth or brush, or with compressed air, but pay attention not to over pressure to avoid damaging the components.

Check and confirm whether the power supply is normal and whether the air switch section is reliable.

Check whether the fan works abnormally and whether there is noise.

Check whether there is oxidation on the output copper bar or copper cable. If yes, please handle it in time.

Check the sealing condition of the 12 VDC power supply:

Check the screws and nuts for looseness.

For 12 V DC power supply with water-cooled plating, please check whether the rectifier machine is free of water, check whether there is water leakage, and tighten the retainer.
